Medium-Duty Anti-Static Rubber Casters
Medium-Duty Anti-Static Rubber Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.

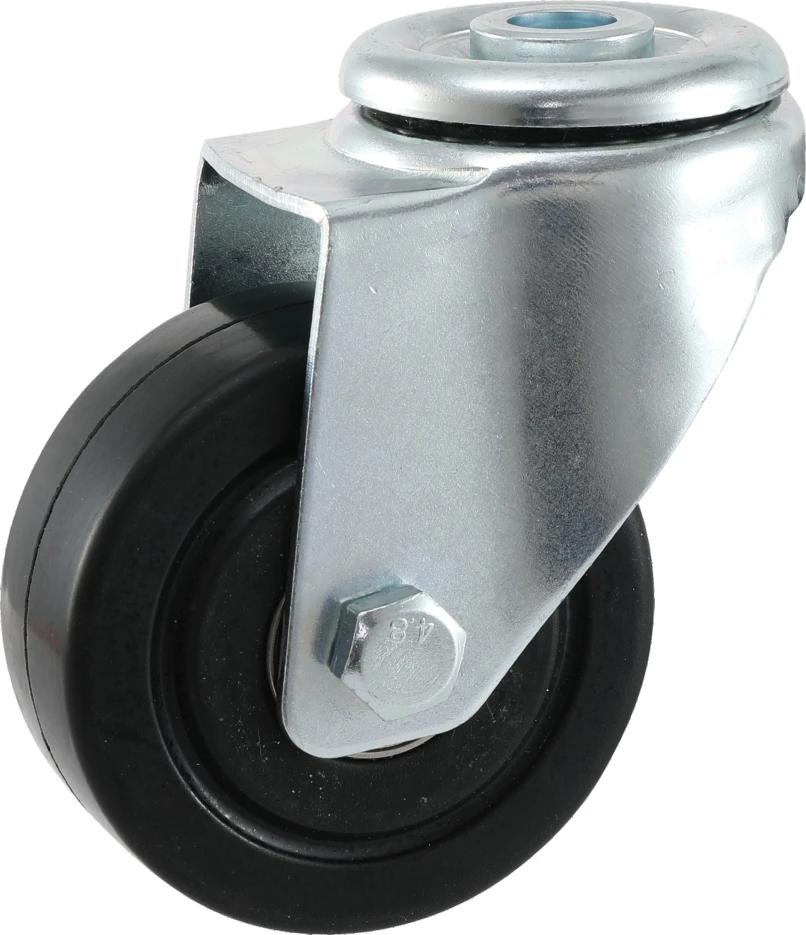

Product illustration from the final catalog. Mounting and brake options vary by model.
Medium-Duty Casters
Anti-StaticRubberChoose a model.
Confirm your application.
No electrical resistance rating is given. Some mounting labels and dimension columns differ; confirm the selected mounting arrangement.
Catalog series: 防静电系列
Final PDF page 28 · Printed folios 51, 52
[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China
Catalog models & specifications
Dimensions & listed loads.
| Manufacturer model | Wheel Ø | Width | Overall height | Material | Mounting | Rotation | Brake | Listed load | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| Z03B-05-75XJ-06 | 75 | 32 | 104 | Rubber | Bolt hole | Swivel | None | 100 | Inquire ↗ |
| Z03B-05-100XJ-06 | 100 | 32 | 128 | Rubber | Bolt hole | Swivel | None | 110 | Inquire ↗ |
| Z03B-05-125XJ-06 | 125 | 32 | 152 | Rubber | Bolt hole | Swivel | None | 125 | Inquire ↗ |
| Z03B-02D-75XJ-06 | 75 | 32 | 104 | Rubber | Grip ring stem | Swivel | Brake | 100 | Inquire ↗ |
| Z03B-02D-100XJ-06 | 100 | 32 | 128 | Rubber | Grip ring stem | Swivel | Brake | 110 | Inquire ↗ |
| Z03B-02D-125XJ-06 | 125 | 32 | 152 | Rubber | Grip ring stem | Swivel | Brake | 125 | Inquire ↗ |
| Z03B-03-75XJ-06 | 75 | 32 | 104 | Rubber | Threaded stem | Swivel | Brake | 100 | Inquire ↗ |
| Z03B-03-100XJ-06 | 100 | 32 | 128 | Rubber | Threaded stem | Swivel | Brake | 110 | Inquire ↗ |
| Z03B-03-125XJ-06 | 125 | 32 | 152 | Rubber | Threaded stem | Swivel | Brake | 125 | Inquire ↗ |
Mounting dimensions
| Model / configuration | Plate size | Hole spacing | Mounting hole | Stem notation | Stem hole distance |
|---|---|---|---|---|---|
| Z03B-05-75XJ-06 Bolt hole · Swivel | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03B-05-100XJ-06 Bolt hole · Swivel | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03B-05-125XJ-06 Bolt hole · Swivel | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03B-02D-75XJ-06 Grip ring stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-02D-100XJ-06 Grip ring stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-02D-125XJ-06 Grip ring stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03-75XJ-06 Threaded stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03-100XJ-06 Threaded stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03-125XJ-06 Threaded stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
Packing, source references & confirmation notes
| Model / configuration | Pcs / carton | Carton dimensions, as printed (mm) | Source | Notes |
|---|---|---|---|---|
| Z03B-05-75XJ-06 Bolt hole · Swivel | 50 | 540*280*235 | PDF 28, table 1, row 1 | Confirm mounting: labels, pictures and dimension columns are inconsistent. |
| Z03B-05-100XJ-06 Bolt hole · Swivel | 50 | 560*320*240 | PDF 28, table 1, row 2 | Confirm mounting: labels, pictures and dimension columns are inconsistent. |
| Z03B-05-125XJ-06 Bolt hole · Swivel | 40 | 540*320*280 | PDF 28, table 1, row 3 | Confirm mounting: labels, pictures and dimension columns are inconsistent. |
| Z03B-02D-75XJ-06 Grip ring stem · Swivel with brake | 50 | 540*280*235 | PDF 28, table 2, row 1 | Confirm mounting: labels, pictures and dimension columns are inconsistent. |
| Z03B-02D-100XJ-06 Grip ring stem · Swivel with brake | 50 | 560*320*240 | PDF 28, table 2, row 2 | Confirm mounting: labels, pictures and dimension columns are inconsistent. |
| Z03B-02D-125XJ-06 Grip ring stem · Swivel with brake | 40 | 540*320*280 | PDF 28, table 2, row 3 | Confirm mounting: labels, pictures and dimension columns are inconsistent. |
| Z03B-03-75XJ-06 Threaded stem · Swivel with brake | 50 | 540*280*235 | PDF 28, table 3, row 1 | Confirm mounting: labels, pictures and dimension columns are inconsistent. |
| Z03B-03-100XJ-06 Threaded stem · Swivel with brake | 50 | 560*320*240 | PDF 28, table 3, row 2 | Confirm mounting: labels, pictures and dimension columns are inconsistent. |
| Z03B-03-125XJ-06 Threaded stem · Swivel with brake | 40 | 540*320*280 | PDF 28, table 3, row 3 | Confirm mounting: labels, pictures and dimension columns are inconsistent. |

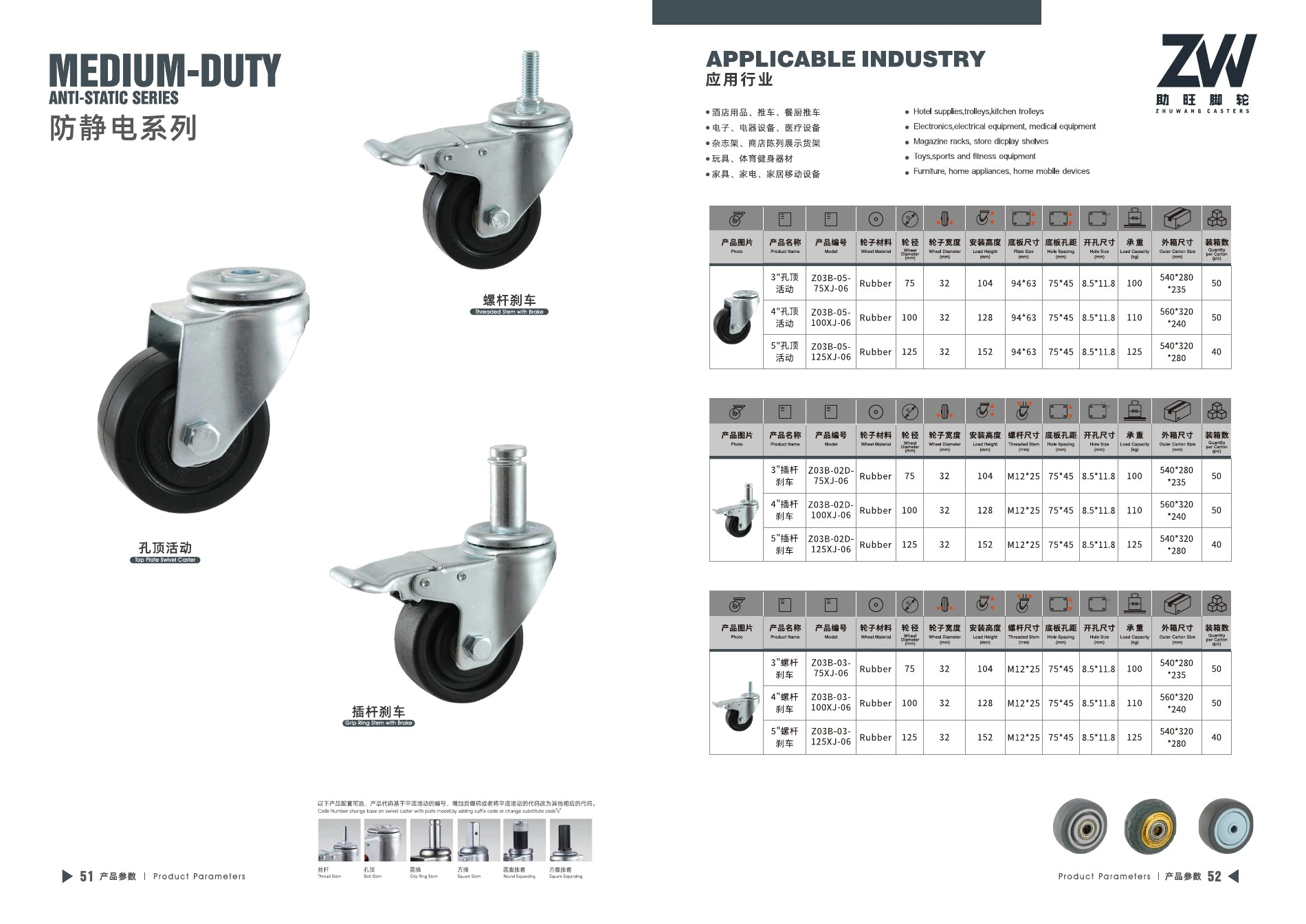

View original catalog pages
Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.
Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
