Medium-Duty Anti-Static TPR Casters
Medium-Duty Anti-Static TPR Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.

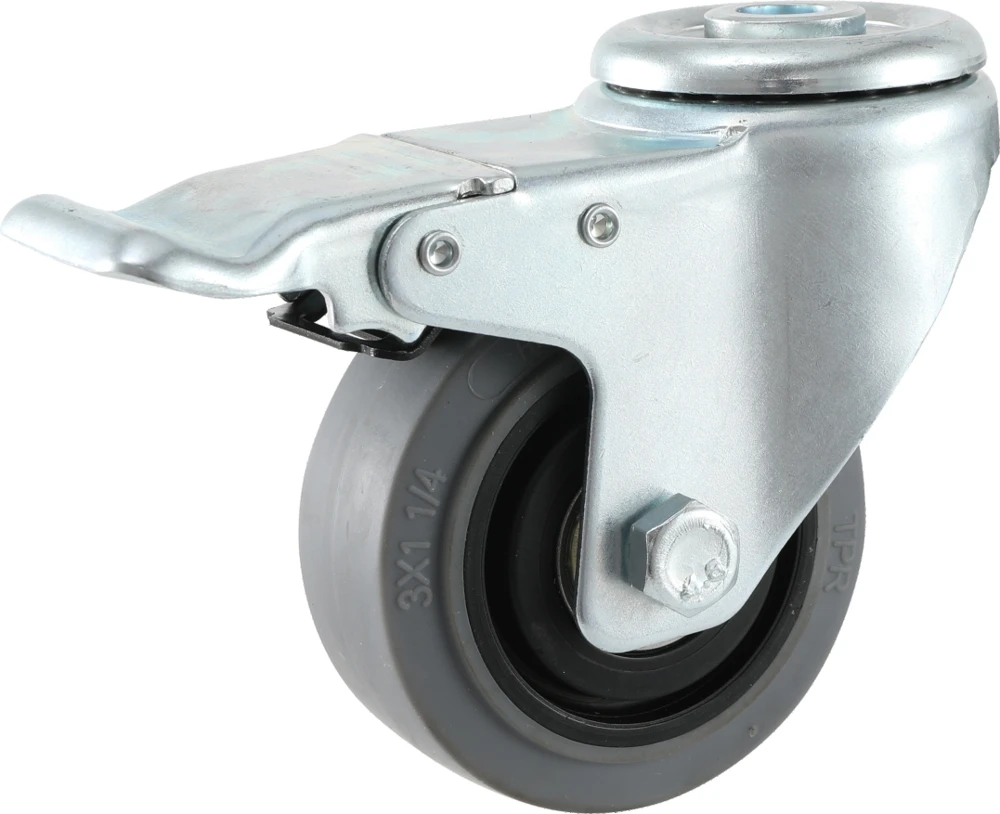

Product illustration from the final catalog. Mounting and brake options vary by model.
Medium-Duty Casters
Anti-StaticTPRChoose a model.
Confirm your application.
No electrical resistance value is specified. Some mounting labels and dimension columns differ; confirm mounting details and required resistance.
Catalog series: TPR防静电系列
Final PDF page 26 · Printed folios 47, 48
[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China
Catalog models & specifications
Dimensions & listed loads.
| Manufacturer model | Wheel Ø | Width | Overall height | Material | Mounting | Rotation | Brake | Listed load | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| Z03B-05D-75TPR-04 | 75 | 32 | 104 | TPR | Bolt hole | Swivel | Brake | 100 | Inquire ↗ |
| Z03B-05D-100TPR-04 | 100 | 32 | 128 | TPR | Bolt hole | Swivel | Brake | 110 | Inquire ↗ |
| Z03B-05D-125TPR-04 | 125 | 32 | 152 | TPR | Bolt hole | Swivel | Brake | 125 | Inquire ↗ |
| Z03B-06D-75TPR-04 | 75 | 32 | 104 | TPR | Expanding stem | Swivel | Brake | 100 | Inquire ↗ |
| Z03B-06D-100TPR-04 | 100 | 32 | 128 | TPR | Expanding stem | Swivel | Brake | 110 | Inquire ↗ |
| Z03B-06D-125TPR-04 | 125 | 32 | 152 | TPR | Expanding stem | Swivel | Brake | 125 | Inquire ↗ |
| Z03B-03-75TPR-04 | 75 | 32 | 104 | TPR | Threaded stem | Swivel | None | 100 | Inquire ↗ |
| Z03B-03-100TPR-04 | 100 | 32 | 128 | TPR | Threaded stem | Swivel | None | 110 | Inquire ↗ |
| Z03B-03-125TPR-04 | 125 | 32 | 152 | TPR | Threaded stem | Swivel | None | 125 | Inquire ↗ |
Mounting dimensions
| Model / configuration | Plate size | Hole spacing | Mounting hole | Stem notation | Stem hole distance |
|---|---|---|---|---|---|
| Z03B-05D-75TPR-04 Bolt hole · Swivel with brake | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03B-05D-100TPR-04 Bolt hole · Swivel with brake | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03B-05D-125TPR-04 Bolt hole · Swivel with brake | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03B-06D-75TPR-04 Expanding stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-06D-100TPR-04 Expanding stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-06D-125TPR-04 Expanding stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03-75TPR-04 Threaded stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03-100TPR-04 Threaded stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03-125TPR-04 Threaded stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
Packing, source references & confirmation notes
| Model / configuration | Pcs / carton | Carton dimensions, as printed (mm) | Source | Notes |
|---|---|---|---|---|
| Z03B-05D-75TPR-04 Bolt hole · Swivel with brake | 50 | 540*280*235 | PDF 26, table 1, row 1 | Mounting labels and dimensions differ in source; confirm mounting fit. |
| Z03B-05D-100TPR-04 Bolt hole · Swivel with brake | 50 | 560*320*240 | PDF 26, table 1, row 2 | Mounting labels and dimensions differ in source; confirm mounting fit. |
| Z03B-05D-125TPR-04 Bolt hole · Swivel with brake | 40 | 540*320*280 | PDF 26, table 1, row 3 | Mounting labels and dimensions differ in source; confirm mounting fit. |
| Z03B-06D-75TPR-04 Expanding stem · Swivel with brake | 50 | 540*280*235 | PDF 26, table 2, row 1 | Mounting labels and dimensions differ in source; confirm mounting fit. |
| Z03B-06D-100TPR-04 Expanding stem · Swivel with brake | 50 | 560*320*240 | PDF 26, table 2, row 2 | Mounting labels and dimensions differ in source; confirm mounting fit. |
| Z03B-06D-125TPR-04 Expanding stem · Swivel with brake | 40 | 540*320*280 | PDF 26, table 2, row 3 | Mounting labels and dimensions differ in source; confirm mounting fit. |
| Z03B-03-75TPR-04 Threaded stem · Swivel | 50 | 540*280*235 | PDF 26, table 3, row 1 | Mounting labels and dimensions differ in source; confirm mounting fit. |
| Z03B-03-100TPR-04 Threaded stem · Swivel | 50 | 560*320*240 | PDF 26, table 3, row 2 | Mounting labels and dimensions differ in source; confirm mounting fit. |
| Z03B-03-125TPR-04 Threaded stem · Swivel | 40 | 540*320*280 | PDF 26, table 3, row 3 | Mounting labels and dimensions differ in source; confirm mounting fit. |

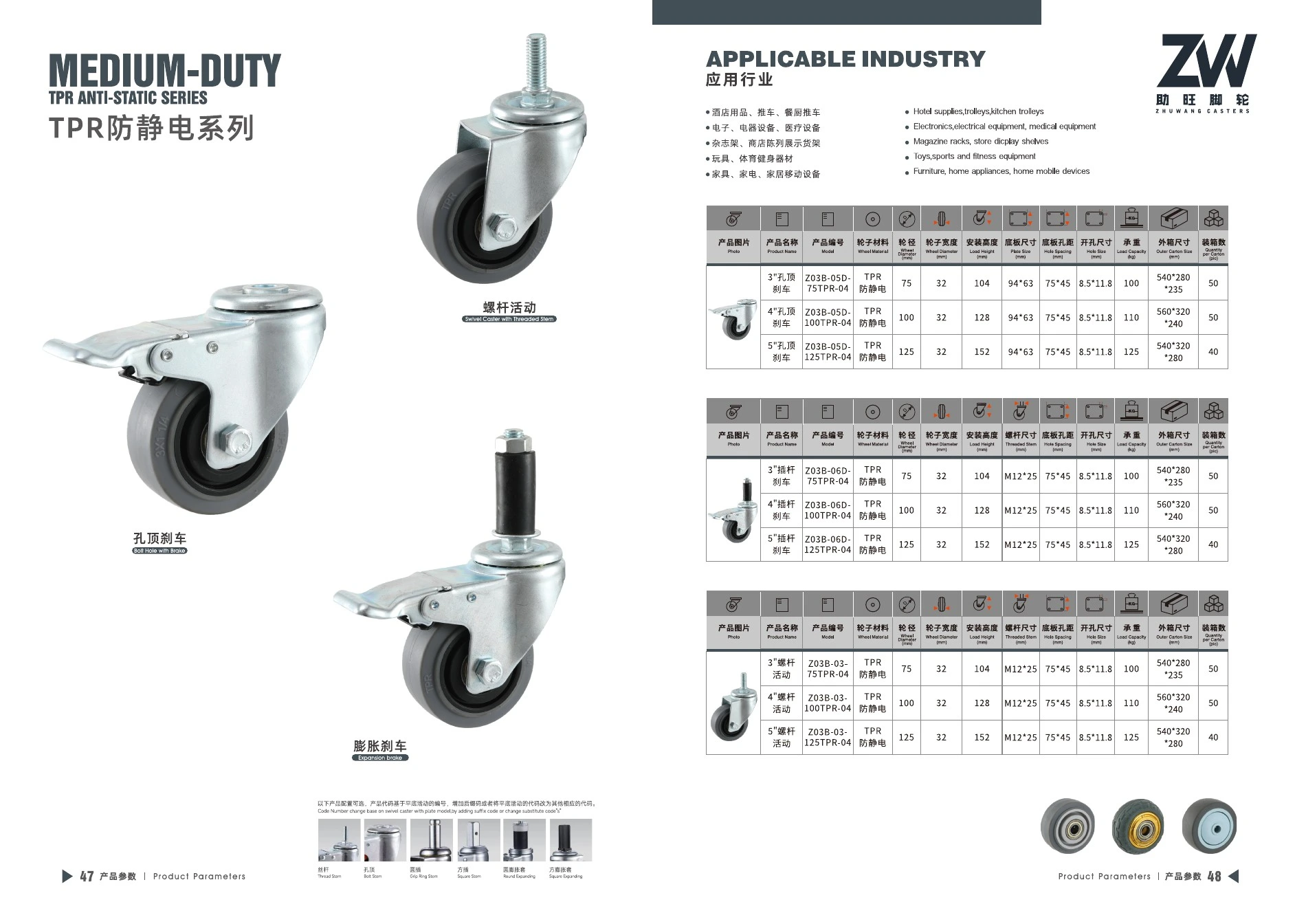

View original catalog pages
Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.
Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
