Heavy-Duty Low-Profile Reinforced Nylon Casters
Heavy-Duty Low-Profile Reinforced Nylon Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.

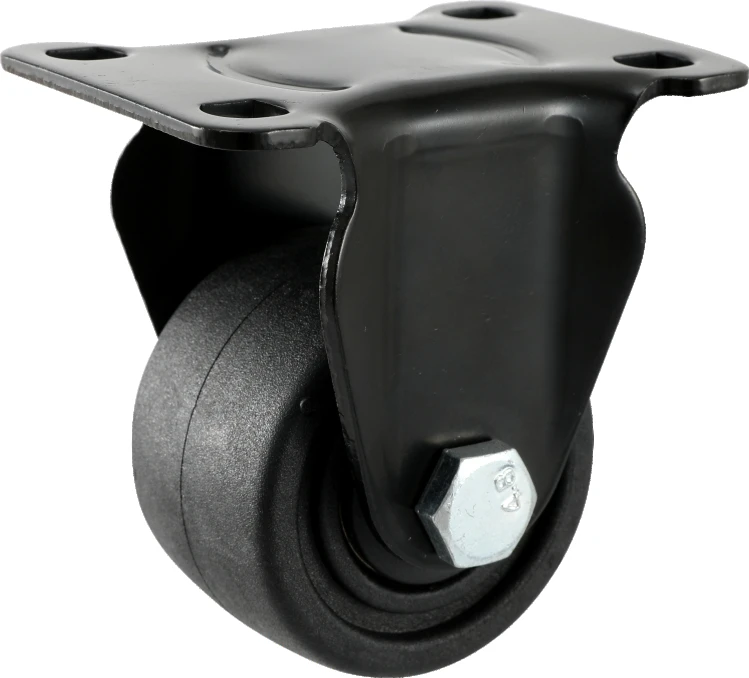

Product illustration from the final catalog. Mounting and brake options vary by model.
Heavy-Duty Casters
Low-profileReinforced nylonChoose a model.
Confirm your application.
Choose a catalog model and confirm mounting fit, operating conditions and current availability with our team.
Catalog series: 低重心系列
Final PDF page 32 · Printed folios 39, 40
[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China
Catalog models & specifications
Dimensions & listed loads.
| Manufacturer model | Wheel Ø | Width | Overall height | Material | Mounting | Rotation | Brake | Listed load | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| B05A-01D-40PA | 40 | 40 | 62 | Reinforced nylon | Top plate | Swivel | Brake | 150 | Inquire ↗ |
| B05A-01D-50PA | 50 | 40 | 75 | Reinforced nylon | Top plate | Swivel | Brake | 300 | Inquire ↗ |
| B05A-01D-63PA | 63 | 40 | 94 | Reinforced nylon | Top plate | Swivel | Brake | 500 | Inquire ↗ |
| B05A-01D-75PA | 75 | 45 | 109 | Reinforced nylon | Top plate | Swivel | Brake | 600 | Inquire ↗ |
| B05A-01-40PA | 40 | 40 | 62 | Reinforced nylon | Top plate | Swivel | None | 150 | Inquire ↗ |
| B05A-01-50PA | 50 | 40 | 75 | Reinforced nylon | Top plate | Swivel | None | 300 | Inquire ↗ |
| B05A-01-63PA | 63 | 40 | 94 | Reinforced nylon | Top plate | Swivel | None | 500 | Inquire ↗ |
| B05A-01-75PA | 75 | 45 | 109 | Reinforced nylon | Top plate | Swivel | None | 600 | Inquire ↗ |
| B05A-04-40PA | 40 | 40 | 62 | Reinforced nylon | Top plate | Rigid | None | 150 | Inquire ↗ |
| B05A-04-50PA | 50 | 40 | 75 | Reinforced nylon | Top plate | Rigid | None | 300 | Inquire ↗ |
| B05A-04-63PA | 63 | 40 | 94 | Reinforced nylon | Top plate | Rigid | None | 500 | Inquire ↗ |
| B05A-04-75PA | 75 | 45 | 109 | Reinforced nylon | Top plate | Rigid | None | 600 | Inquire ↗ |
Mounting dimensions
| Model / configuration | Plate size | Hole spacing | Mounting hole | Stem notation | Stem hole distance |
|---|---|---|---|---|---|
| B05A-01D-40PA Top plate · Swivel with brake | 95*65 | 72*43 | 6.2 | Pending confirmation | Pending confirmation |
| B05A-01D-50PA Top plate · Swivel with brake | 95*65 | 72*43 | 6.2 | Pending confirmation | Pending confirmation |
| B05A-01D-63PA Top plate · Swivel with brake | 95*65 | 72*43 | 6.2 | Pending confirmation | Pending confirmation |
| B05A-01D-75PA Top plate · Swivel with brake | 106*80 | 83*60 | 6.2 | Pending confirmation | Pending confirmation |
| B05A-01-40PA Top plate · Swivel | 95*65 | 72*43 | 6.2 | Pending confirmation | Pending confirmation |
| B05A-01-50PA Top plate · Swivel | 95*65 | 72*43 | 6.2 | Pending confirmation | Pending confirmation |
| B05A-01-63PA Top plate · Swivel | 95*65 | 72*43 | 6.2 | Pending confirmation | Pending confirmation |
| B05A-01-75PA Top plate · Swivel | 106*80 | 83*60 | 6.2 | Pending confirmation | Pending confirmation |
| B05A-04-40PA Top plate · Rigid | 95*65 | 72*43 | 6.2 | Pending confirmation | Pending confirmation |
| B05A-04-50PA Top plate · Rigid | 95*65 | 72*43 | 6.2 | Pending confirmation | Pending confirmation |
| B05A-04-63PA Top plate · Rigid | 95*65 | 72*43 | 6.2 | Pending confirmation | Pending confirmation |
| B05A-04-75PA Top plate · Rigid | 106*80 | 83*60 | 6.2 | Pending confirmation | Pending confirmation |
Packing, source references & confirmation notes
| Model / configuration | Pcs / carton | Carton dimensions, as printed (mm) | Source | Notes |
|---|---|---|---|---|
| B05A-01D-40PA Top plate · Swivel with brake | 150 | 540*280*235 | PDF 32, table 1, row 1 | Confirm the selected model and order requirements. |
| B05A-01D-50PA Top plate · Swivel with brake | 100 | 540*280*235 | PDF 32, table 1, row 2 | Confirm the selected model and order requirements. |
| B05A-01D-63PA Top plate · Swivel with brake | 50 | 540*280*235 | PDF 32, table 1, row 3 | Confirm the selected model and order requirements. |
| B05A-01D-75PA Top plate · Swivel with brake | 40 | 540*280*235 | PDF 32, table 1, row 4 | Confirm the selected model and order requirements. |
| B05A-01-40PA Top plate · Swivel | 200 | 540*280*235 | PDF 32, table 2, row 1 | Confirm the selected model and order requirements. |
| B05A-01-50PA Top plate · Swivel | 150 | 540*280*235 | PDF 32, table 2, row 2 | Confirm the selected model and order requirements. |
| B05A-01-63PA Top plate · Swivel | 60 | 540*280*235 | PDF 32, table 2, row 3 | Confirm the selected model and order requirements. |
| B05A-01-75PA Top plate · Swivel | 50 | 540*280*235 | PDF 32, table 2, row 4 | Confirm the selected model and order requirements. |
| B05A-04-40PA Top plate · Rigid | 200 | 540*280*235 | PDF 32, table 3, row 1 | Confirm the selected model and order requirements. |
| B05A-04-50PA Top plate · Rigid | 150 | 540*280*235 | PDF 32, table 3, row 2 | Confirm the selected model and order requirements. |
| B05A-04-63PA Top plate · Rigid | 60 | 540*280*235 | PDF 32, table 3, row 3 | Confirm the selected model and order requirements. |
| B05A-04-75PA Top plate · Rigid | 50 | 540*280*235 | PDF 32, table 3, row 4 | Confirm the selected model and order requirements. |

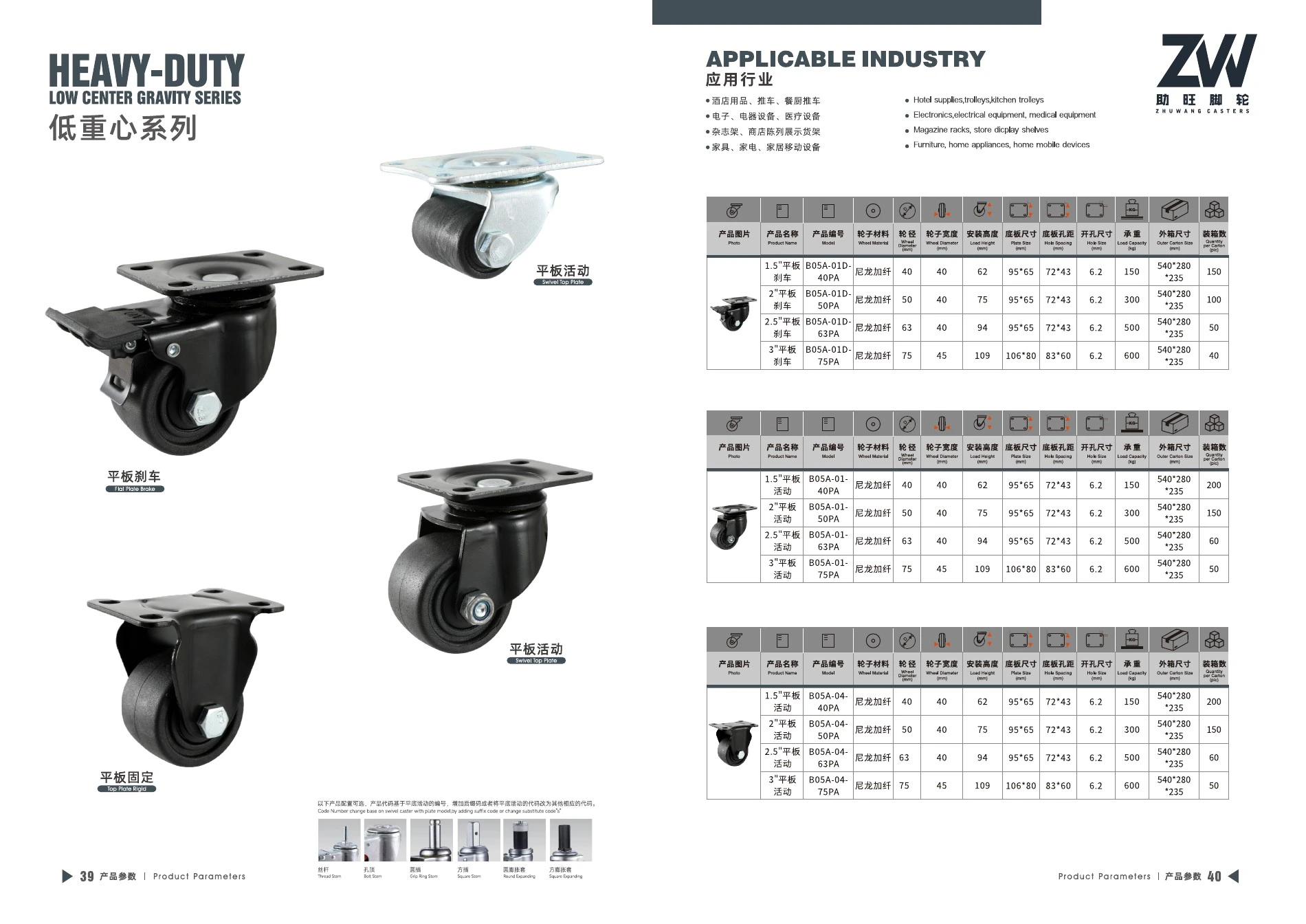

View original catalog pages
Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.
Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
← Complete product catalogStart with your application.
Tell us the load, wheel size, mounting type and order quantity.
