Heavy-Duty Iron-Core PU Casters
Heavy-Duty Iron-Core PU Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.
Product illustration from the final catalog. Mounting and brake options vary by model.
Heavy-Duty Casters
PUChoose a model.
Confirm your application.
Confirm the selected mounting configuration and application before ordering.
Catalog series: 重型铁芯PU系列
Final PDF page 39 · Printed folios 75, 76
[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China
Catalog models & specifications
Dimensions & listed loads.
| Manufacturer model | Wheel Ø | Width | Overall height | Material | Mounting | Rotation | Brake | Listed load | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| Z07-01D-100PU-06 | 100 | 48 | 145 | PU | Top plate | Swivel | Double brake | 270 | Inquire ↗ |
| Z07-01D-125PU-06 | 125 | 48 | 165 | PU | Top plate | Swivel | Double brake | 320 | Inquire ↗ |
| Z07-01D-150PU-06 | 150 | 48 | 188 | PU | Top plate | Swivel | Double brake | 420 | Inquire ↗ |
| Z07-01D-200PU-06 | 200 | 48 | 238 | PU | Top plate | Swivel | Double brake | 480 | Inquire ↗ |
| Z07-01-100PU-06 | 100 | 48 | 145 | PU | Top plate | Swivel | None | 270 | Inquire ↗ |
| Z07-01-125PU-06 | 125 | 48 | 165 | PU | Top plate | Swivel | None | 320 | Inquire ↗ |
| Z07-01-150PU-06 | 150 | 48 | 188 | PU | Top plate | Swivel | None | 420 | Inquire ↗ |
| Z07-01-200PU-06 | 200 | 48 | 238 | PU | Top plate | Swivel | None | 480 | Inquire ↗ |
| Z07-04-100PU-06 | 100 | 48 | 145 | PU | Top plate | Rigid | None | 270 | Inquire ↗ |
| Z07-04-125PU-06 | 125 | 48 | 165 | PU | Top plate | Rigid | None | 320 | Inquire ↗ |
| Z07-04-150PU-06 | 150 | 48 | 188 | PU | Top plate | Rigid | None | 420 | Inquire ↗ |
| Z07-04-200PU-06 | 200 | 48 | 238 | PU | Top plate | Rigid | None | 480 | Inquire ↗ |
Mounting dimensions
| Model / configuration | Plate size | Hole spacing | Mounting hole | Stem notation | Stem hole distance |
|---|---|---|---|---|---|
| Z07-01D-100PU-06 Top plate · Swivel with double brake | 115*100 | 84*72 | 11*20 | Pending confirmation | Pending confirmation |
| Z07-01D-125PU-06 Top plate · Swivel with double brake | 115*100 | 84*72 | 11*20 | Pending confirmation | Pending confirmation |
| Z07-01D-150PU-06 Top plate · Swivel with double brake | 115*100 | 84*72 | 11*20 | Pending confirmation | Pending confirmation |
| Z07-01D-200PU-06 Top plate · Swivel with double brake | 115*100 | 84*72 | 11*20 | Pending confirmation | Pending confirmation |
| Z07-01-100PU-06 Top plate · Swivel | 115*100 | 84*72 | 11*20 | Pending confirmation | Pending confirmation |
| Z07-01-125PU-06 Top plate · Swivel | 115*100 | 84*72 | 11*20 | Pending confirmation | Pending confirmation |
| Z07-01-150PU-06 Top plate · Swivel | 115*100 | 84*72 | 11*20 | Pending confirmation | Pending confirmation |
| Z07-01-200PU-06 Top plate · Swivel | 115*100 | 84*72 | 11*20 | Pending confirmation | Pending confirmation |
| Z07-04-100PU-06 Top plate · Rigid | 115*100 | 84*72 | 11*20 | Pending confirmation | Pending confirmation |
| Z07-04-125PU-06 Top plate · Rigid | 115*100 | 84*72 | 11*20 | Pending confirmation | Pending confirmation |
| Z07-04-150PU-06 Top plate · Rigid | 115*100 | 84*72 | 11*20 | Pending confirmation | Pending confirmation |
| Z07-04-200PU-06 Top plate · Rigid | 115*100 | 84*72 | 11*20 | Pending confirmation | Pending confirmation |
Packing, source references & confirmation notes
| Model / configuration | Pcs / carton | Carton dimensions, as printed (mm) | Source | Notes |
|---|---|---|---|---|
| Z07-01D-100PU-06 Top plate · Swivel with double brake | 12 | 315*275*360 | PDF 39, table 1, row 1 | Confirm the selected model and order requirements. |
| Z07-01D-125PU-06 Top plate · Swivel with double brake | 12 | 380*380*320 | PDF 39, table 1, row 2 | Confirm the selected model and order requirements. |
| Z07-01D-150PU-06 Top plate · Swivel with double brake | 8 | 400*400*270 | PDF 39, table 1, row 3 | Confirm the selected model and order requirements. |
| Z07-01D-200PU-06 Top plate · Swivel with double brake | 4 | 385*250*230 | PDF 39, table 1, row 4 | Confirm the selected model and order requirements. |
| Z07-01-100PU-06 Top plate · Swivel | 12 | 315*275*190 | PDF 39, table 2, row 1 | Confirm the selected model and order requirements. |
| Z07-01-125PU-06 Top plate · Swivel | 12 | 340*340*320 | PDF 39, table 2, row 2 | Confirm the selected model and order requirements. |
| Z07-01-150PU-06 Top plate · Swivel | 12 | 320*320*320 | PDF 39, table 2, row 3 | Confirm the selected model and order requirements. |
| Z07-01-200PU-06 Top plate · Swivel | 8 | 370*250*215 | PDF 39, table 2, row 4 | Confirm the selected model and order requirements. |
| Z07-04-100PU-06 Top plate · Rigid | 12 | 315*275*190 | PDF 39, table 3, row 1 | Confirm the selected model and order requirements. |
| Z07-04-125PU-06 Top plate · Rigid | 12 | 340*340*320 | PDF 39, table 3, row 2 | Confirm the selected model and order requirements. |
| Z07-04-150PU-06 Top plate · Rigid | 12 | 320*320*320 | PDF 39, table 3, row 3 | Confirm the selected model and order requirements. |
| Z07-04-200PU-06 Top plate · Rigid | 8 | 370*250*215 | PDF 39, table 3, row 4 | Confirm the selected model and order requirements. |

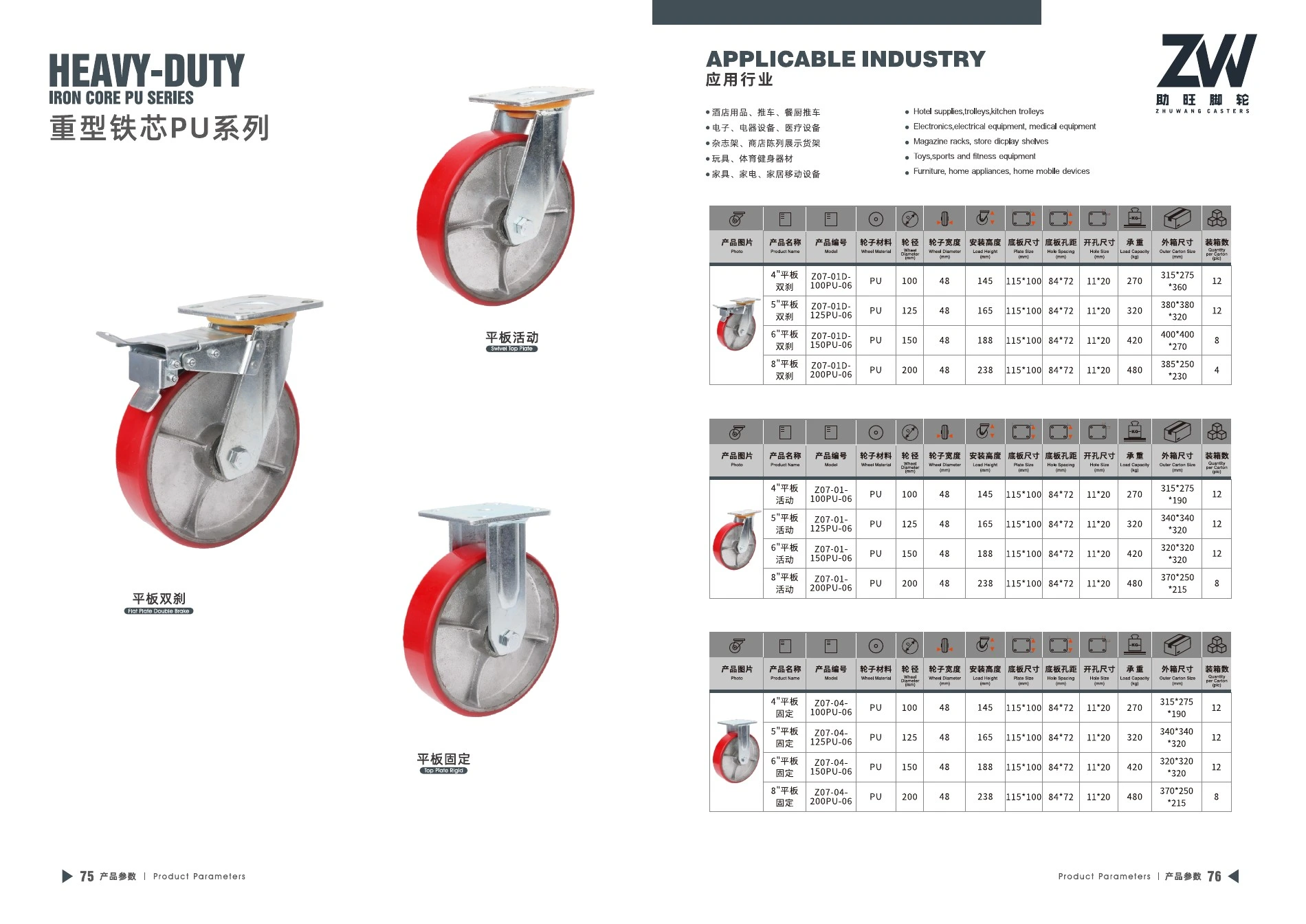

View original catalog pages
Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.
Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
