Medium-Duty High-Temperature Nylon Casters
Medium-Duty High-Temperature Nylon Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.
Product illustration from the final catalog. Mounting and brake options vary by model.
Medium-Duty Casters
High-TemperatureNylon / PAChoose a model.
Confirm your application.
The source heading lists 200°–300° without explicit unit or test conditions. Confirm temperature unit, exposure duration, load and mounting before use; no certification is implied.
Catalog series: 耐高温系列
Final PDF page 30 · Printed folios 55, 56
[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China
Catalog models & specifications
Dimensions & listed loads.
| Manufacturer model | Wheel Ø | Width | Overall height | Material | Mounting | Rotation | Brake | Listed load | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| Z03B-02-75gwPA-08 | 75 | 32 | 104 | Nylon / PA | Threaded stem | Swivel | None | 100 | Inquire ↗ |
| Z03B-02-100gwPA-08 | 100 | 32 | 128 | Nylon / PA | Threaded stem | Swivel | None | 110 | Inquire ↗ |
| Z03B-02-125gwPA-08 | 125 | 32 | 152 | Nylon / PA | Threaded stem | Swivel | None | 125 | Inquire ↗ |
| Z03B-03-75gwPA-08 | 75 | 32 | 104 | Nylon / PA | Grip ring stem | Swivel | None | 100 | Inquire ↗ |
| Z03B-03-100gwPA-08 | 100 | 32 | 128 | Nylon / PA | Grip ring stem | Swivel | None | 110 | Inquire ↗ |
| Z03B-03-125gwPA-08 | 125 | 32 | 152 | Nylon / PA | Grip ring stem | Swivel | None | 125 | Inquire ↗ |
| Z03B-03D-75gwPA-08 | 75 | 32 | 104 | Nylon / PA | Grip ring stem | Swivel | Brake | 100 | Inquire ↗ |
| Z03B-03D-100gwPA-08 | 100 | 32 | 128 | Nylon / PA | Grip ring stem | Swivel | Brake | 110 | Inquire ↗ |
| Z03B-03D-125gwPA-08 | 125 | 32 | 152 | Nylon / PA | Grip ring stem | Swivel | Brake | 125 | Inquire ↗ |
| B03B-02D-75gwPA-08 | 75 | 32 | 104 | Nylon / PA | Threaded stem | Swivel | Brake | 100 | Inquire ↗ |
| B03B-02D-100gwPA-08 | 100 | 32 | 128 | Nylon / PA | Threaded stem | Swivel | Brake | 110 | Inquire ↗ |
| B03B-02D-125gwPA-08 | 125 | 32 | 152 | Nylon / PA | Threaded stem | Swivel | Brake | 125 | Inquire ↗ |
Mounting dimensions
| Model / configuration | Plate size | Hole spacing | Mounting hole | Stem notation | Stem hole distance |
|---|---|---|---|---|---|
| Z03B-02-75gwPA-08 Threaded stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-02-100gwPA-08 Threaded stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-02-125gwPA-08 Threaded stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03-75gwPA-08 Grip ring stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03-100gwPA-08 Grip ring stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03-125gwPA-08 Grip ring stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03D-75gwPA-08 Grip ring stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03D-100gwPA-08 Grip ring stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03D-125gwPA-08 Grip ring stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| B03B-02D-75gwPA-08 Threaded stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| B03B-02D-100gwPA-08 Threaded stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| B03B-02D-125gwPA-08 Threaded stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
Packing, source references & confirmation notes
| Model / configuration | Pcs / carton | Carton dimensions, as printed (mm) | Source | Notes |
|---|---|---|---|---|
| Z03B-02-75gwPA-08 Threaded stem · Swivel | 50 | 540*280*235 | PDF 30, table 1, row 1 | Temperature unit/test conditions and mounting details require confirmation. |
| Z03B-02-100gwPA-08 Threaded stem · Swivel | 50 | 560*320*240 | PDF 30, table 1, row 2 | Temperature unit/test conditions and mounting details require confirmation. |
| Z03B-02-125gwPA-08 Threaded stem · Swivel | 40 | 540*320*280 | PDF 30, table 1, row 3 | Temperature unit/test conditions and mounting details require confirmation. |
| Z03B-03-75gwPA-08 Grip ring stem · Swivel | 50 | 540*280*235 | PDF 30, table 2, row 1 | Temperature unit/test conditions and mounting details require confirmation. |
| Z03B-03-100gwPA-08 Grip ring stem · Swivel | 50 | 560*320*240 | PDF 30, table 2, row 2 | Temperature unit/test conditions and mounting details require confirmation. |
| Z03B-03-125gwPA-08 Grip ring stem · Swivel | 40 | 540*320*280 | PDF 30, table 2, row 3 | Temperature unit/test conditions and mounting details require confirmation. |
| Z03B-03D-75gwPA-08 Grip ring stem · Swivel with brake | 50 | 540*280*235 | PDF 30, table 3, row 1 | Temperature unit/test conditions and mounting details require confirmation. |
| Z03B-03D-100gwPA-08 Grip ring stem · Swivel with brake | 50 | 560*320*240 | PDF 30, table 3, row 2 | Temperature unit/test conditions and mounting details require confirmation. |
| Z03B-03D-125gwPA-08 Grip ring stem · Swivel with brake | 40 | 540*320*280 | PDF 30, table 3, row 3 | Temperature unit/test conditions and mounting details require confirmation. |
| B03B-02D-75gwPA-08 Threaded stem · Swivel with brake | 50 | 540*280*235 | PDF 30, table 4, row 1 | Temperature unit/test conditions and mounting details require confirmation. |
| B03B-02D-100gwPA-08 Threaded stem · Swivel with brake | 50 | 560*320*240 | PDF 30, table 4, row 2 | Temperature unit/test conditions and mounting details require confirmation. |
| B03B-02D-125gwPA-08 Threaded stem · Swivel with brake | 40 | 540*320*280 | PDF 30, table 4, row 3 | Temperature unit/test conditions and mounting details require confirmation. |

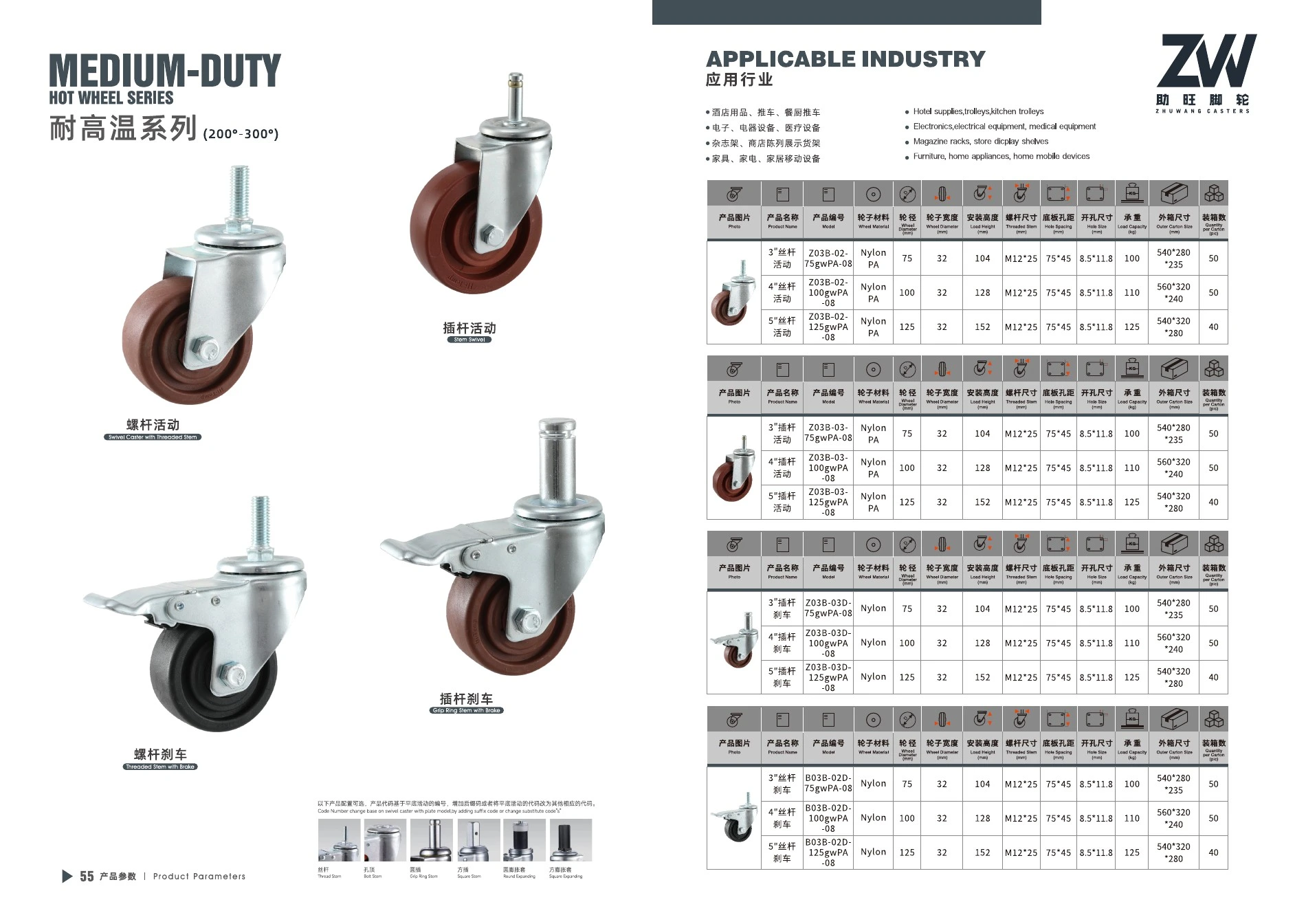

View original catalog pages
Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.
Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
← Complete product catalogStart with your application.
Tell us the load, wheel size, mounting type and order quantity.
