Industrial Rubber Casters
Industrial Rubber Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.

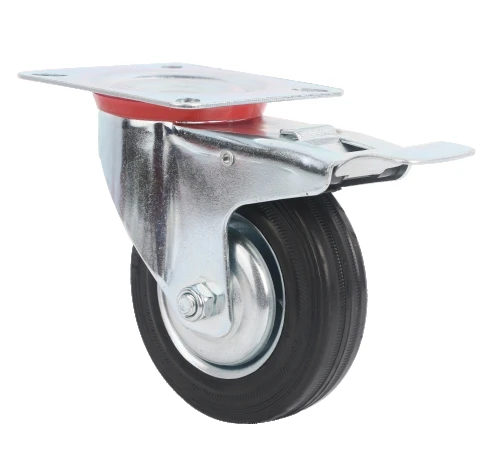

Product illustration from the final catalog. Mounting and brake options vary by model.
Industrial Casters
RubberChoose a model.
Confirm your application.
Choose a catalog model and confirm mounting fit, operating conditions and current availability with our team.
Catalog series: 工业橡胶轮系列
Final PDF page 33 · Printed folios 65, 66
[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China
Catalog models & specifications
Dimensions & listed loads.
| Manufacturer model | Wheel Ø | Width | Overall height | Material | Mounting | Rotation | Brake | Listed load | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| Z06-01D-75GYXJ | 75 | 20 | 94 | Rubber | Top plate | Swivel | Brake | 50 | Inquire ↗ |
| Z06-01D-100GYXJ | 100 | 30 | 121 | Rubber | Top plate | Swivel | Brake | 70 | Inquire ↗ |
| Z06-01D-125GYXJ | 125 | 37 | 147 | Rubber | Top plate | Swivel | Brake | 100 | Inquire ↗ |
| Z06-01D-160GYXJ | 160 | 40 | 198 | Rubber | Top plate | Swivel | Brake | 145 | Inquire ↗ |
| Z06-01D-200GYXJ | 200 | 50 | 235 | Rubber | Top plate | Swivel | Brake | 185 | Inquire ↗ |
| Z06-01-75GYXJ | 75 | 20 | 94 | Rubber | Top plate | Swivel | None | 50 | Inquire ↗ |
| Z06-01-100GYXJ | 100 | 30 | 121 | Rubber | Top plate | Swivel | None | 70 | Inquire ↗ |
| Z06-01-125GYXJ | 125 | 37 | 147 | Rubber | Top plate | Swivel | None | 100 | Inquire ↗ |
| Z06-01-160GYXJ | 160 | 40 | 198 | Rubber | Top plate | Swivel | None | 145 | Inquire ↗ |
| Z06-01-200GYXJ | 200 | 50 | 235 | Rubber | Top plate | Swivel | None | 185 | Inquire ↗ |
| Z06-04-75GYXJ | 75 | 20 | 94 | Rubber | Top plate | Rigid | None | 50 | Inquire ↗ |
| Z06-04-100GYXJ | 100 | 30 | 121 | Rubber | Top plate | Rigid | None | 70 | Inquire ↗ |
| Z06-04-125GYXJ | 125 | 37 | 147 | Rubber | Top plate | Rigid | None | 100 | Inquire ↗ |
| Z06-04-160GYXJ | 160 | 40 | 198 | Rubber | Top plate | Rigid | None | 145 | Inquire ↗ |
| Z06-04-200GYXJ | 200 | 50 | 235 | Rubber | Top plate | Rigid | None | 185 | Inquire ↗ |
Mounting dimensions
| Model / configuration | Plate size | Hole spacing | Mounting hole | Stem notation | Stem hole distance |
|---|---|---|---|---|---|
| Z06-01D-75GYXJ Top plate · Swivel with brake | 82*68 | 61*44 | 8.3 | Pending confirmation | Pending confirmation |
| Z06-01D-100GYXJ Top plate · Swivel with brake | 100*82 | 80*60 | 8.3 | Pending confirmation | Pending confirmation |
| Z06-01D-125GYXJ Top plate · Swivel with brake | 100*82 | 80*60 | 8.3 | Pending confirmation | Pending confirmation |
| Z06-01D-160GYXJ Top plate · Swivel with brake | 135*105 | 105*75 | 12.1 | Pending confirmation | Pending confirmation |
| Z06-01D-200GYXJ Top plate · Swivel with brake | 135*105 | 105*75 | 12.1 | Pending confirmation | Pending confirmation |
| Z06-01-75GYXJ Top plate · Swivel | 82*68 | 61*44 | 8.3 | Pending confirmation | Pending confirmation |
| Z06-01-100GYXJ Top plate · Swivel | 100*82 | 80*60 | 8.3 | Pending confirmation | Pending confirmation |
| Z06-01-125GYXJ Top plate · Swivel | 100*82 | 80*60 | 8.3 | Pending confirmation | Pending confirmation |
| Z06-01-160GYXJ Top plate · Swivel | 135*105 | 105*75 | 12.1 | Pending confirmation | Pending confirmation |
| Z06-01-200GYXJ Top plate · Swivel | 135*105 | 105*75 | 12.1 | Pending confirmation | Pending confirmation |
| Z06-04-75GYXJ Top plate · Rigid | 82*68 | 61*44 | 8.3 | Pending confirmation | Pending confirmation |
| Z06-04-100GYXJ Top plate · Rigid | 100*82 | 80*60 | 8.3 | Pending confirmation | Pending confirmation |
| Z06-04-125GYXJ Top plate · Rigid | 100*82 | 80*60 | 8.3 | Pending confirmation | Pending confirmation |
| Z06-04-160GYXJ Top plate · Rigid | 135*105 | 105*75 | 12.1 | Pending confirmation | Pending confirmation |
| Z06-04-200GYXJ Top plate · Rigid | 135*105 | 105*75 | 12.1 | Pending confirmation | Pending confirmation |
Packing, source references & confirmation notes
| Model / configuration | Pcs / carton | Carton dimensions, as printed (mm) | Source | Notes |
|---|---|---|---|---|
| Z06-01D-75GYXJ Top plate · Swivel with brake | 12 | 315*275*190 | PDF 33, table 1, row 1 | Confirm the selected model and order requirements. |
| Z06-01D-100GYXJ Top plate · Swivel with brake | 12 | 315*275*190 | PDF 33, table 1, row 2 | Confirm the selected model and order requirements. |
| Z06-01D-125GYXJ Top plate · Swivel with brake | 12 | 340*340*320 | PDF 33, table 1, row 3 | Confirm the selected model and order requirements. |
| Z06-01D-160GYXJ Top plate · Swivel with brake | 12 | 320*320*320 | PDF 33, table 1, row 4 | Confirm the selected model and order requirements. |
| Z06-01D-200GYXJ Top plate · Swivel with brake | 8 | 370*250*215 | PDF 33, table 1, row 5 | Confirm the selected model and order requirements. |
| Z06-01-75GYXJ Top plate · Swivel | 12 | 315*275*190 | PDF 33, table 2, row 1 | Confirm the selected model and order requirements. |
| Z06-01-100GYXJ Top plate · Swivel | 12 | 315*275*190 | PDF 33, table 2, row 2 | Confirm the selected model and order requirements. |
| Z06-01-125GYXJ Top plate · Swivel | 12 | 340*340*320 | PDF 33, table 2, row 3 | Confirm the selected model and order requirements. |
| Z06-01-160GYXJ Top plate · Swivel | 12 | 320*320*320 | PDF 33, table 2, row 4 | Confirm the selected model and order requirements. |
| Z06-01-200GYXJ Top plate · Swivel | 8 | 370*250*215 | PDF 33, table 2, row 5 | Confirm the selected model and order requirements. |
| Z06-04-75GYXJ Top plate · Rigid | 12 | 315*275*190 | PDF 33, table 3, row 1 | Confirm the selected model and order requirements. |
| Z06-04-100GYXJ Top plate · Rigid | 12 | 315*275*190 | PDF 33, table 3, row 2 | Confirm the selected model and order requirements. |
| Z06-04-125GYXJ Top plate · Rigid | 12 | 340*340*320 | PDF 33, table 3, row 3 | Confirm the selected model and order requirements. |
| Z06-04-160GYXJ Top plate · Rigid | 12 | 320*320*320 | PDF 33, table 3, row 4 | Confirm the selected model and order requirements. |
| Z06-04-200GYXJ Top plate · Rigid | 8 | 370*250*215 | PDF 33, table 3, row 5 | Confirm the selected model and order requirements. |

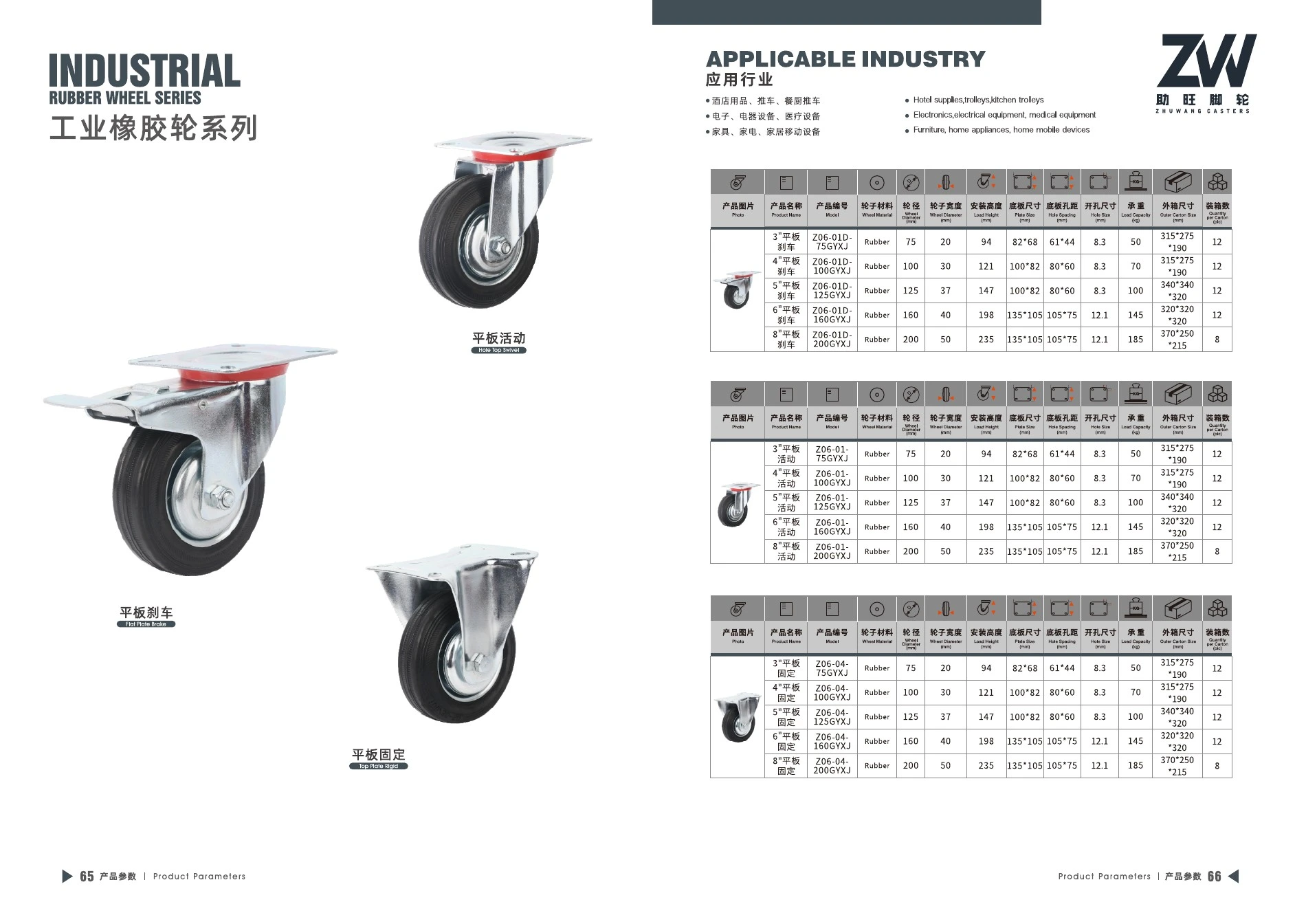

View original catalog pages
Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.
Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
