Light-Duty Pressed-Bracket PP Casters

Light-Duty Pressed-Bracket PP Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.

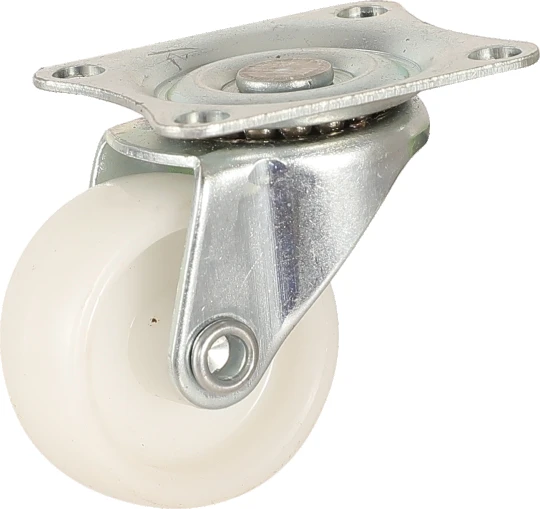

Light-Duty Pressed-Bracket PP Casters

Product illustration from the final catalog. Mounting and brake options vary by model.

Light-Duty Casters

PP

Choose a model.
Confirm your application.

Nominal model sizes and some listed wheel diameters differ. Values are reproduced as printed; confirm the selected model before ordering.

Catalog series: 轻型通花系列
Final PDF pages 4, 5 · Printed folios 21, 22, 23, 24

Inquire about this series ↗Download Product Catalog ↓

[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China

Catalog models & specifications

Dimensions & listed loads.

Dimensions in mm; listed loads in kg per caster. Pending confirmation means missing, conflicting or not reliably established.
Manufacturer modelWheel ØWidthOverall heightMaterialMountingRotationBrakeListed loadInquiry
Z01-01-25PP-01202450PPTop plateSwivelNone25Inquire ↗
Z01-01-32PP-01252450PPTop plateSwivelNone25Inquire ↗
Z01-01-38PP-01382450PPTop plateSwivelNone27Inquire ↗
Z01-01-50PP-01492464PPTop plateSwivelNone40Inquire ↗
Z01-01-63PP-01632881PPTop plateSwivelNone70Inquire ↗
Z01-01-75PP-01753194PPTop plateSwivelNone90Inquire ↗
Z01-01C-25PP-01202450PPTop plateSwivelSide brake25Inquire ↗
Z01-01C-32PP-01252450PPTop plateSwivelSide brake25Inquire ↗
Z01-01C-38PP-01382450PPTop plateSwivelSide brake27Inquire ↗
Z01-01C-50PP-01492464PPTop plateSwivelSide brake40Inquire ↗
Z01-01C-63PP-01632881PPTop plateSwivelSide brake70Inquire ↗
Z01-01C-75PP-01753194PPTop plateSwivelSide brake90Inquire ↗
Z01-04-25PP-01202450PPTop plateRigidNone25Inquire ↗
Z01-04-32PP-01252450PPTop plateRigidNone25Inquire ↗
Z01-04-38PP-01382450PPTop plateRigidNone27Inquire ↗
Z01-04-50PP-01492464PPTop plateRigidNone40Inquire ↗
Z01-04-63PP-01632881PPTop plateRigidNone70Inquire ↗
Z01-04-75PP-01753194PPTop plateRigidNone90Inquire ↗
Z01-02-25PP-01202450PPThreaded stemSwivelNone25Inquire ↗
Z01-02-32PP-01252450PPThreaded stemSwivelNone25Inquire ↗
Z01-02-38PP-01382450PPThreaded stemSwivelNone27Inquire ↗
Z01-02-50PP-01492464PPThreaded stemSwivelNone40Inquire ↗
Z01-02-63PP-01632881PPThreaded stemSwivelNone70Inquire ↗
Z01-02-75PP-01753194PPThreaded stemSwivelNone90Inquire ↗
Z01-02C-25PP-01202450PPThreaded stemSwivelSide brake25Inquire ↗
Z01-02C-32PP-01252450PPThreaded stemSwivelSide brake25Inquire ↗
Z01-02C-38PP-01382450PPThreaded stemSwivelSide brake27Inquire ↗
Z01-02C-50PP-01492464PPThreaded stemSwivelSide brake40Inquire ↗
Z01-02C-63PP-01632881PPThreaded stemSwivelSide brake70Inquire ↗
Z01-02C-75PP-01753194PPThreaded stemSwivelSide brake90Inquire ↗
Z01-03-25PP-01202450PPGrip ring stemSwivelNone25Inquire ↗
Z01-03-32PP-01252450PPGrip ring stemSwivelNone25Inquire ↗
Z01-03-38PP-01382450PPGrip ring stemSwivelNone27Inquire ↗
Z01-03-50PP-01492464PPGrip ring stemSwivelNone40Inquire ↗
Z01-03-63PP-01632881PPGrip ring stemSwivelNone70Inquire ↗
Z01-03-75PP-01753194PPGrip ring stemSwivelNone90Inquire ↗
Z01-03C-25PP-01202450PPGrip ring stemSwivelSide brake25Inquire ↗
Z01-03C-32PP-01252450PPGrip ring stemSwivelSide brake25Inquire ↗
Z01-03C-38PP-01382450PPGrip ring stemSwivelSide brake27Inquire ↗
Z01-03C-50PP-01492464PPGrip ring stemSwivelSide brake40Inquire ↗
Z01-03C-63PP-01632881PPGrip ring stemSwivelSide brake70Inquire ↗
Z01-03C-75PP-01753194PPGrip ring stemSwivelSide brake90Inquire ↗
Mounting dimensions
Source dimension notation retained, mm. An asterisk separates dimensions; stem notation is reproduced without inferring a thread.
Model / configurationPlate sizeHole spacingMounting holeStem notationStem hole distance
Z01-01-25PP-01
Top plate · Swivel		61*3648*236.2Pending confirmationPending confirmation
Z01-01-32PP-01
Top plate · Swivel		64*3648*236.2Pending confirmationPending confirmation
Z01-01-38PP-01
Top plate · Swivel		64*3648*236.2Pending confirmationPending confirmation
Z01-01-50PP-01
Top plate · Swivel		66*3953*236.2Pending confirmationPending confirmation
Z01-01-63PP-01
Top plate · Swivel		99*5281*258Pending confirmationPending confirmation
Z01-01-75PP-01
Top plate · Swivel		104*5984*368.2Pending confirmationPending confirmation
Z01-01C-25PP-01
Top plate · Swivel with side brake		61*3648*236.2Pending confirmationPending confirmation
Z01-01C-32PP-01
Top plate · Swivel with side brake		64*3648*236.2Pending confirmationPending confirmation
Z01-01C-38PP-01
Top plate · Swivel with side brake		64*3648*236.2Pending confirmationPending confirmation
Z01-01C-50PP-01
Top plate · Swivel with side brake		66*3953*236.2Pending confirmationPending confirmation
Z01-01C-63PP-01
Top plate · Swivel with side brake		99*5281*258Pending confirmationPending confirmation
Z01-01C-75PP-01
Top plate · Swivel with side brake		104*5984*368.2Pending confirmationPending confirmation
Z01-04-25PP-01
Top plate · Rigid		61*3648*236.2Pending confirmationPending confirmation
Z01-04-32PP-01
Top plate · Rigid		64*3648*236.2Pending confirmationPending confirmation
Z01-04-38PP-01
Top plate · Rigid		64*3648*236.2Pending confirmationPending confirmation
Z01-04-50PP-01
Top plate · Rigid		66*3953*236.2Pending confirmationPending confirmation
Z01-04-63PP-01
Top plate · Rigid		99*5281*258Pending confirmationPending confirmation
Z01-04-75PP-01
Top plate · Rigid		104*5984*368.2Pending confirmationPending confirmation
Z01-02-25PP-01
Threaded stem · Swivel		Pending confirmation48*236.2M12*25Pending confirmation
Z01-02-32PP-01
Threaded stem · Swivel		Pending confirmation48*236.2M12*25Pending confirmation
Z01-02-38PP-01
Threaded stem · Swivel		Pending confirmation48*236.2M12*25Pending confirmation
Z01-02-50PP-01
Threaded stem · Swivel		Pending confirmation53*236.2M12*25Pending confirmation
Z01-02-63PP-01
Threaded stem · Swivel		Pending confirmation81*258M12*25Pending confirmation
Z01-02-75PP-01
Threaded stem · Swivel		Pending confirmation84*368.2M12*25Pending confirmation
Z01-02C-25PP-01
Threaded stem · Swivel with side brake		Pending confirmation48*236.2M12*25Pending confirmation
Z01-02C-32PP-01
Threaded stem · Swivel with side brake		Pending confirmation48*236.2M12*25Pending confirmation
Z01-02C-38PP-01
Threaded stem · Swivel with side brake		Pending confirmation48*236.2M12*25Pending confirmation
Z01-02C-50PP-01
Threaded stem · Swivel with side brake		Pending confirmation53*236.2M12*25Pending confirmation
Z01-02C-63PP-01
Threaded stem · Swivel with side brake		Pending confirmation81*258M12*25Pending confirmation
Z01-02C-75PP-01
Threaded stem · Swivel with side brake		Pending confirmation84*368.2M12*25Pending confirmation
Z01-03-25PP-01
Grip ring stem · Swivel		Pending confirmation48*236.2M12*25Pending confirmation
Z01-03-32PP-01
Grip ring stem · Swivel		Pending confirmation48*236.2M12*25Pending confirmation
Z01-03-38PP-01
Grip ring stem · Swivel		Pending confirmation48*236.2M12*25Pending confirmation
Z01-03-50PP-01
Grip ring stem · Swivel		Pending confirmation53*236.2M12*25Pending confirmation
Z01-03-63PP-01
Grip ring stem · Swivel		Pending confirmation81*258M12*25Pending confirmation
Z01-03-75PP-01
Grip ring stem · Swivel		Pending confirmation84*368.2M12*25Pending confirmation
Z01-03C-25PP-01
Grip ring stem · Swivel with side brake		Pending confirmation48*236.2M12*25Pending confirmation
Z01-03C-32PP-01
Grip ring stem · Swivel with side brake		Pending confirmation48*236.2M12*25Pending confirmation
Z01-03C-38PP-01
Grip ring stem · Swivel with side brake		Pending confirmation48*236.2M12*25Pending confirmation
Z01-03C-50PP-01
Grip ring stem · Swivel with side brake		Pending confirmation53*236.2M12*25Pending confirmation
Z01-03C-63PP-01
Grip ring stem · Swivel with side brake		Pending confirmation81*258M12*25Pending confirmation
Z01-03C-75PP-01
Grip ring stem · Swivel with side brake		Pending confirmation84*368.2M12*25Pending confirmation
Packing, source references & confirmation notes
Model / configurationPcs / cartonCarton dimensions, as printed (mm)SourceNotes
Z01-01-25PP-01
Top plate · Swivel		1000500*350*220PDF 4, table 1, row 1Model/nominal size differs from listed wheel diameter; confirm selection. Nominal inch label/model number differs from listed wheel diameter. No conversion substituted.
Z01-01-32PP-01
Top plate · Swivel		800500*350*220PDF 4, table 1, row 2Model/nominal size differs from listed wheel diameter; confirm selection. Nominal inch label/model number differs from listed wheel diameter. No conversion substituted.
Z01-01-38PP-01
Top plate · Swivel		500500*350*220PDF 4, table 1, row 3Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-01-50PP-01
Top plate · Swivel		200500*350*220PDF 4, table 1, row 4Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-01-63PP-01
Top plate · Swivel		150500*350*220PDF 4, table 1, row 5Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-01-75PP-01
Top plate · Swivel		100500*350*220PDF 4, table 1, row 6Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-01C-25PP-01
Top plate · Swivel with side brake		800500*350*220PDF 4, table 2, row 1Model/nominal size differs from listed wheel diameter; confirm selection. Nominal inch label/model number differs from listed wheel diameter. No conversion substituted.
Z01-01C-32PP-01
Top plate · Swivel with side brake		600500*350*220PDF 4, table 2, row 2Model/nominal size differs from listed wheel diameter; confirm selection. Nominal inch label/model number differs from listed wheel diameter. No conversion substituted.
Z01-01C-38PP-01
Top plate · Swivel with side brake		300500*350*220PDF 4, table 2, row 3Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-01C-50PP-01
Top plate · Swivel with side brake		150500*350*220PDF 4, table 2, row 4Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-01C-63PP-01
Top plate · Swivel with side brake		100500*350*220PDF 4, table 2, row 5Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-01C-75PP-01
Top plate · Swivel with side brake		60500*350*220PDF 4, table 2, row 6Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-04-25PP-01
Top plate · Rigid		1000500*350*220PDF 4, table 3, row 1Model/nominal size differs from listed wheel diameter; confirm selection. Nominal inch label/model number differs from listed wheel diameter. No conversion substituted.
Z01-04-32PP-01
Top plate · Rigid		800500*350*220PDF 4, table 3, row 2Model/nominal size differs from listed wheel diameter; confirm selection. Nominal inch label/model number differs from listed wheel diameter. No conversion substituted.
Z01-04-38PP-01
Top plate · Rigid		500500*350*220PDF 4, table 3, row 3Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-04-50PP-01
Top plate · Rigid		200500*350*220PDF 4, table 3, row 4Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-04-63PP-01
Top plate · Rigid		150500*350*220PDF 4, table 3, row 5Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-04-75PP-01
Top plate · Rigid		100500*350*220PDF 4, table 3, row 6Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-02-25PP-01
Threaded stem · Swivel		1000500*350*220PDF 5, table 1, row 1Model/nominal size differs from listed wheel diameter; confirm selection. Nominal inch label/model number differs from listed wheel diameter. No conversion substituted.
Z01-02-32PP-01
Threaded stem · Swivel		800500*350*220PDF 5, table 1, row 2Model/nominal size differs from listed wheel diameter; confirm selection. Nominal inch label/model number differs from listed wheel diameter. No conversion substituted.
Z01-02-38PP-01
Threaded stem · Swivel		500500*350*220PDF 5, table 1, row 3Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-02-50PP-01
Threaded stem · Swivel		200500*350*220PDF 5, table 1, row 4Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-02-63PP-01
Threaded stem · Swivel		150500*350*220PDF 5, table 1, row 5Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-02-75PP-01
Threaded stem · Swivel		100500*350*220PDF 5, table 1, row 6Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-02C-25PP-01
Threaded stem · Swivel with side brake		800500*350*220PDF 5, table 2, row 1Model/nominal size differs from listed wheel diameter; confirm selection. Nominal inch label/model number differs from listed wheel diameter. No conversion substituted.
Z01-02C-32PP-01
Threaded stem · Swivel with side brake		600500*350*220PDF 5, table 2, row 2Model/nominal size differs from listed wheel diameter; confirm selection. Nominal inch label/model number differs from listed wheel diameter. No conversion substituted.
Z01-02C-38PP-01
Threaded stem · Swivel with side brake		300500*350*220PDF 5, table 2, row 3Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-02C-50PP-01
Threaded stem · Swivel with side brake		150500*350*220PDF 5, table 2, row 4Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-02C-63PP-01
Threaded stem · Swivel with side brake		100500*350*220PDF 5, table 2, row 5Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-02C-75PP-01
Threaded stem · Swivel with side brake		60500*350*220PDF 5, table 2, row 6Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-03-25PP-01
Grip ring stem · Swivel		1000500*350*220PDF 5, table 3, row 1Model/nominal size differs from listed wheel diameter; confirm selection. Nominal inch label/model number differs from listed wheel diameter. No conversion substituted.
Z01-03-32PP-01
Grip ring stem · Swivel		800500*350*220PDF 5, table 3, row 2Model/nominal size differs from listed wheel diameter; confirm selection. Nominal inch label/model number differs from listed wheel diameter. No conversion substituted.
Z01-03-38PP-01
Grip ring stem · Swivel		500500*350*220PDF 5, table 3, row 3Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-03-50PP-01
Grip ring stem · Swivel		200500*350*220PDF 5, table 3, row 4Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-03-63PP-01
Grip ring stem · Swivel		150500*350*220PDF 5, table 3, row 5Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-03-75PP-01
Grip ring stem · Swivel		100500*350*220PDF 5, table 3, row 6Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-03C-25PP-01
Grip ring stem · Swivel with side brake		800500*350*220PDF 5, table 4, row 1Model/nominal size differs from listed wheel diameter; confirm selection. Nominal inch label/model number differs from listed wheel diameter. No conversion substituted.
Z01-03C-32PP-01
Grip ring stem · Swivel with side brake		600500*350*220PDF 5, table 4, row 2Model/nominal size differs from listed wheel diameter; confirm selection. Nominal inch label/model number differs from listed wheel diameter. No conversion substituted.
Z01-03C-38PP-01
Grip ring stem · Swivel with side brake		300500*350*220PDF 5, table 4, row 3Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-03C-50PP-01
Grip ring stem · Swivel with side brake		150500*350*220PDF 5, table 4, row 4Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-03C-63PP-01
Grip ring stem · Swivel with side brake		100500*350*220PDF 5, table 4, row 5Model/nominal size differs from listed wheel diameter; confirm selection.
Z01-03C-75PP-01
Grip ring stem · Swivel with side brake		60500*350*220PDF 5, table 4, row 6Model/nominal size differs from listed wheel diameter; confirm selection.

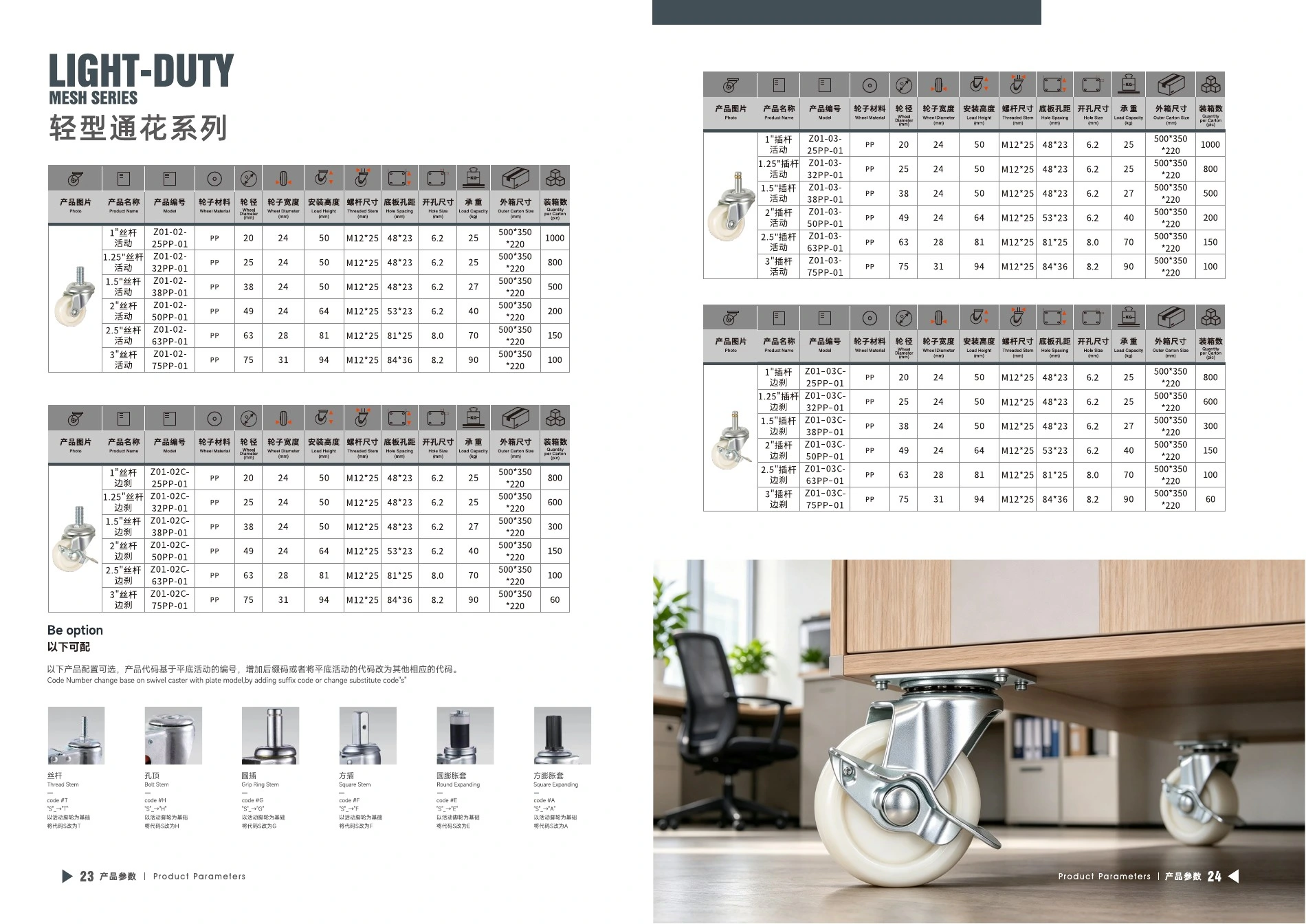

View original catalog pages

Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.

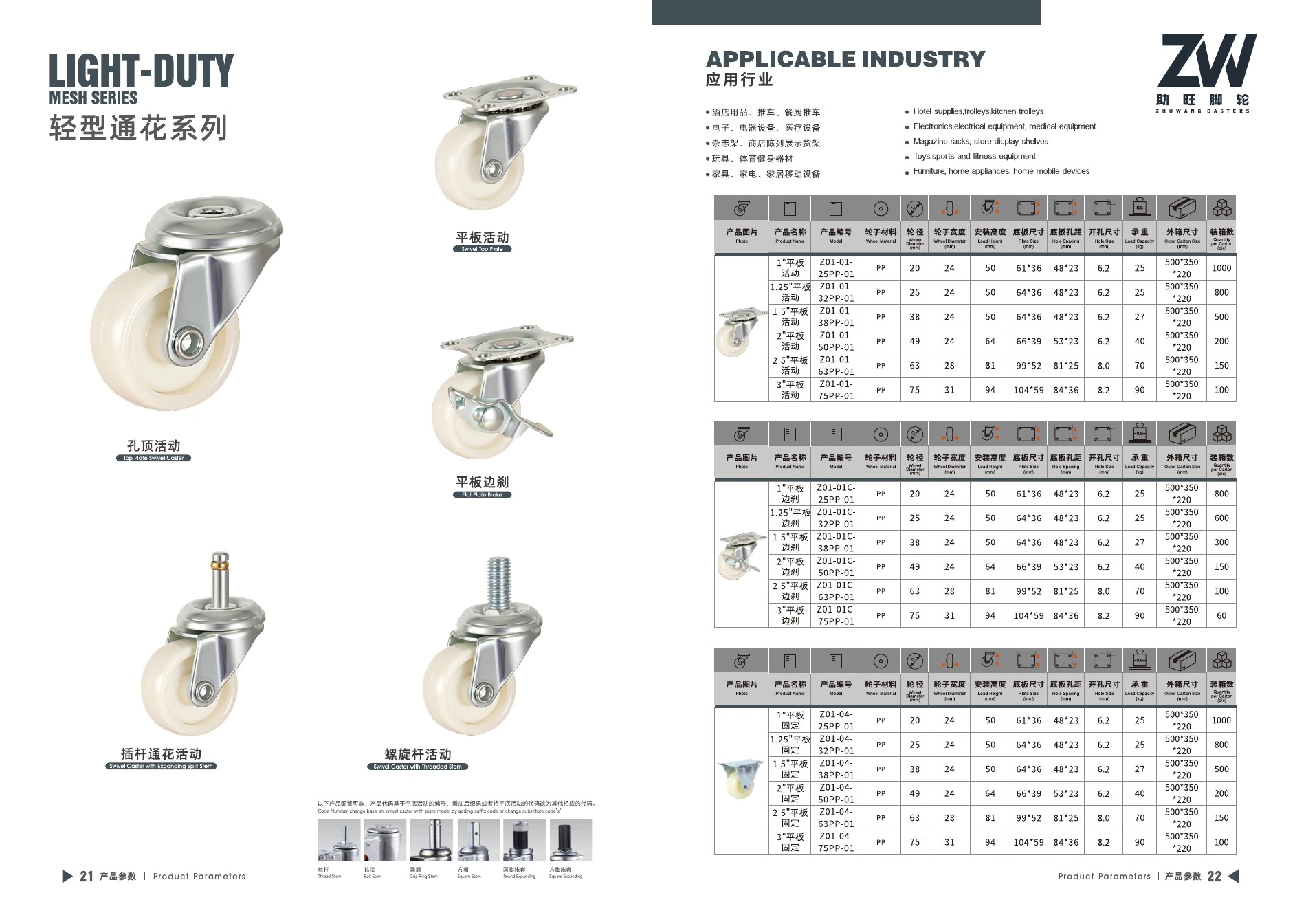

Final product catalog PDF page 4: Light-Duty Pressed-Bracket PP Casters
PDF page 4 · Open in catalog PDF
Final product catalog PDF page 5: Light-Duty Pressed-Bracket PP Casters
PDF page 5 · Open in catalog PDF

Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.

← Complete product catalog

Start with your application.

Tell us the load, wheel size, mounting type and order quantity.

Discuss your requirements ↗
