Products / Light-Duty Single-Wheel PP Casters
Light-Duty Single-Wheel PP Casters
Light-Duty Single-Wheel PP Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.

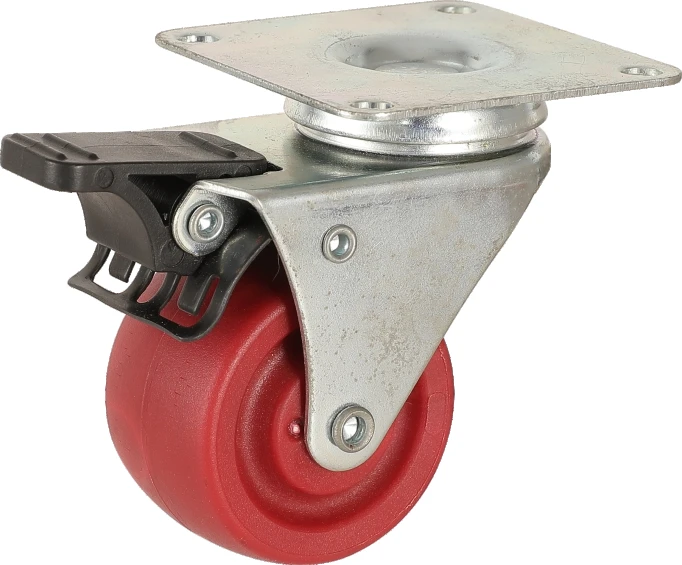

Product illustration from the final catalog. Mounting and brake options vary by model.
Light-Duty Casters
PPChoose a model.
Confirm your application.
The English page heading says twin wheel; the Chinese heading and product illustrations show a single-wheel series.
Catalog series: 轻型单轮系列
Final PDF page 8 · Printed folios 15, 16
[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China
Catalog models & specifications
Dimensions & listed loads.
| Manufacturer model | Wheel Ø | Width | Overall height | Material | Mounting | Rotation | Brake | Listed load | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| Z01A-01-50PP-01 | 50 | 30 | 74 | PP | Top plate | Swivel | None | 30 | Inquire ↗ |
| Z01A-01D-50PP-01 | 50 | 30 | 74 | PP | Top plate | Swivel | Brake | 30 | Inquire ↗ |
| Z01A-02D-50PP-01 | 50 | 30 | 74 | PP | Threaded stem | Swivel | Brake | 30 | Inquire ↗ |
| Z01A-03D-50PP-01 | 50 | 30 | 74 | PP | Grip ring stem | Swivel | Brake | 30 | Inquire ↗ |
Mounting dimensions
| Model / configuration | Plate size | Hole spacing | Mounting hole | Stem notation | Stem hole distance |
|---|---|---|---|---|---|
| Z01A-01-50PP-01 Top plate · Swivel | 61*61 | 49*49 | 6.3*13 | Pending confirmation | Pending confirmation |
| Z01A-01D-50PP-01 Top plate · Swivel with brake | 61*61 | 49*49 | Pending confirmation | Pending confirmation | Pending confirmation |
| Z01A-02D-50PP-01 Threaded stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M10*25 | Pending confirmation |
| Z01A-03D-50PP-01 Grip ring stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | M11*21 | Pending confirmation |
Packing, source references & confirmation notes
| Model / configuration | Pcs / carton | Carton dimensions, as printed (mm) | Source | Notes |
|---|---|---|---|---|
| Z01A-01-50PP-01 Top plate · Swivel | 200 | 500*350*220 | PDF 8, table 1, row 1 | Confirm the selected model and order requirements. |
| Z01A-01D-50PP-01 Top plate · Swivel with brake | 150 | 500*350*220 | PDF 8, table 2, row 1 | Confirm the selected model and order requirements. |
| Z01A-02D-50PP-01 Threaded stem · Swivel with brake | 150 | 500*350*220 | PDF 8, table 3, row 1 | Confirm the selected model and order requirements. |
| Z01A-03D-50PP-01 Grip ring stem · Swivel with brake | 150 | 500*350*220 | PDF 8, table 4, row 1 | Confirm the selected model and order requirements. |

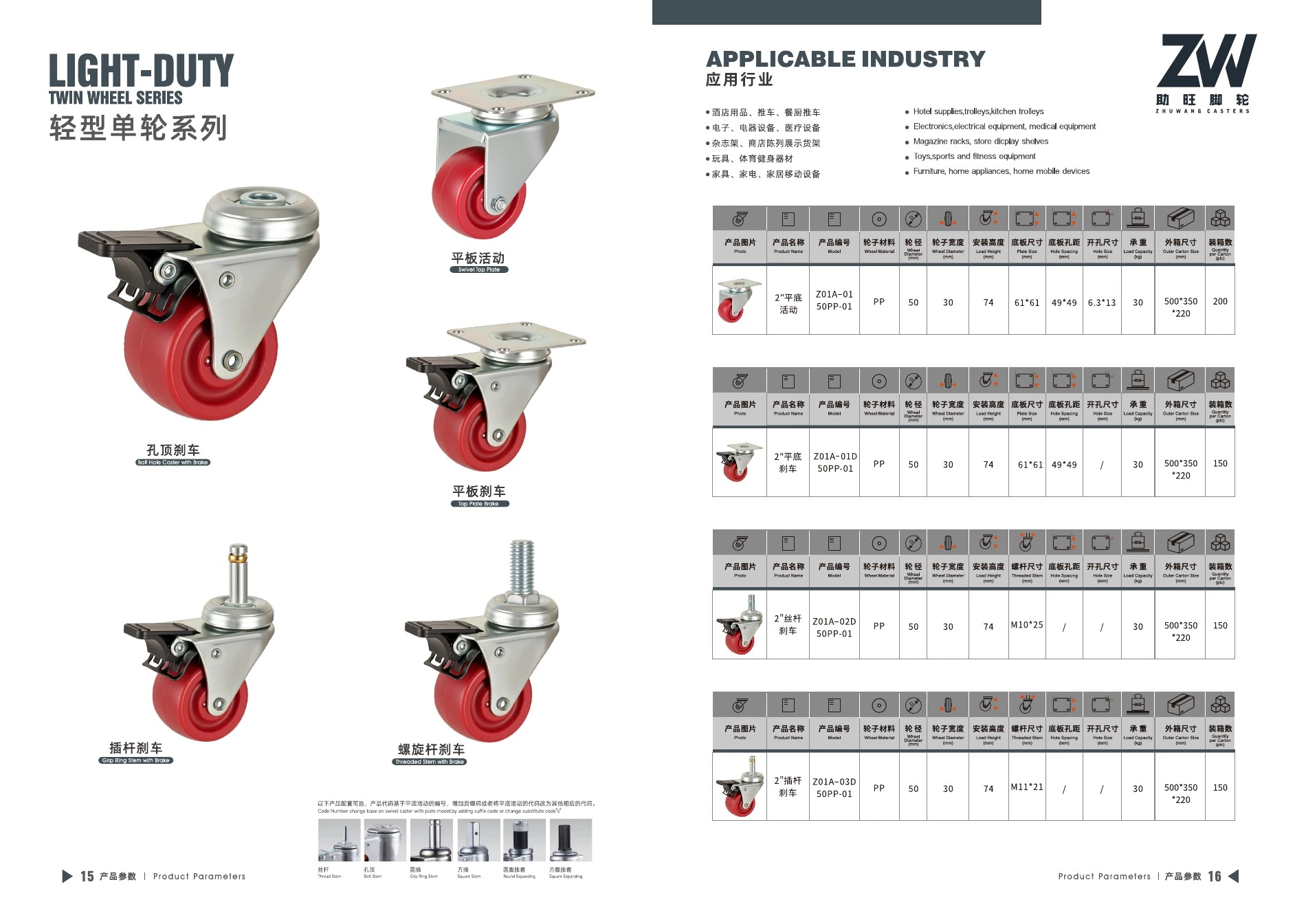

View original catalog pages
Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.
Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
← Complete product catalogStart with your application.
Tell us the load, wheel size, mounting type and order quantity.
