Medium-Duty Industrial TPR Casters
Medium-Duty Industrial TPR Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.
Product illustration from the final catalog. Mounting and brake options vary by model.
Industrial Casters
TPRChoose a model.
Confirm your application.
The rigid row repeats the swivel model code. Both source rows are retained; confirm the configuration in your inquiry.
Catalog series: 中型工业系列
Final PDF page 24 · Printed folios 43, 44
[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China
Catalog models & specifications
Dimensions & listed loads.
| Manufacturer model | Wheel Ø | Width | Overall height | Material | Mounting | Rotation | Brake | Listed load | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| Z03B-01-150TPR-01 | 150 | 32 | 180 | TPR | Top plate | Swivel | None | 135 | Inquire ↗ |
| Z03B-01D-150TPR-01 | 150 | 32 | 180 | TPR | Top plate | Swivel | Brake | 135 | Inquire ↗ |
| Z03B-01-150TPR-01 | 150 | 32 | 180 | TPR | Top plate | Rigid | None | 135 | Inquire ↗ |
Mounting dimensions
| Model / configuration | Plate size | Hole spacing | Mounting hole | Stem notation | Stem hole distance |
|---|---|---|---|---|---|
| Z03B-01-150TPR-01 Top plate · Swivel | 94*63 | 75*45 | 6.2 | Pending confirmation | Pending confirmation |
| Z03B-01D-150TPR-01 Top plate · Swivel with brake | 94*63 | 75*45 | 6.2 | Pending confirmation | Pending confirmation |
| Z03B-01-150TPR-01 Top plate · Rigid | 94*63 | 75*45 | 6.2 | Pending confirmation | Pending confirmation |
Alternative plate / spacing options listed: 103*82 / 80*60; 115*100 / 85*70; 70*60 / 51*41; 92*92 / 60*60. Confirm the selected combination.
Packing, source references & confirmation notes
| Model / configuration | Pcs / carton | Carton dimensions, as printed (mm) | Source | Notes |
|---|---|---|---|---|
| Z03B-01-150TPR-01 Top plate · Swivel | 30 | 540*320*280 | PDF 24, table 1, row 1 | Rigid and swivel rows share a printed model code; specify configuration. |
| Z03B-01D-150TPR-01 Top plate · Swivel with brake | 30 | 540*320*280 | PDF 24, table 2, row 1 | Rigid and swivel rows share a printed model code; specify configuration. |
| Z03B-01-150TPR-01 Top plate · Rigid | 30 | 540*320*280 | PDF 24, table 3, row 1 | Rigid and swivel rows share a printed model code; specify configuration. |

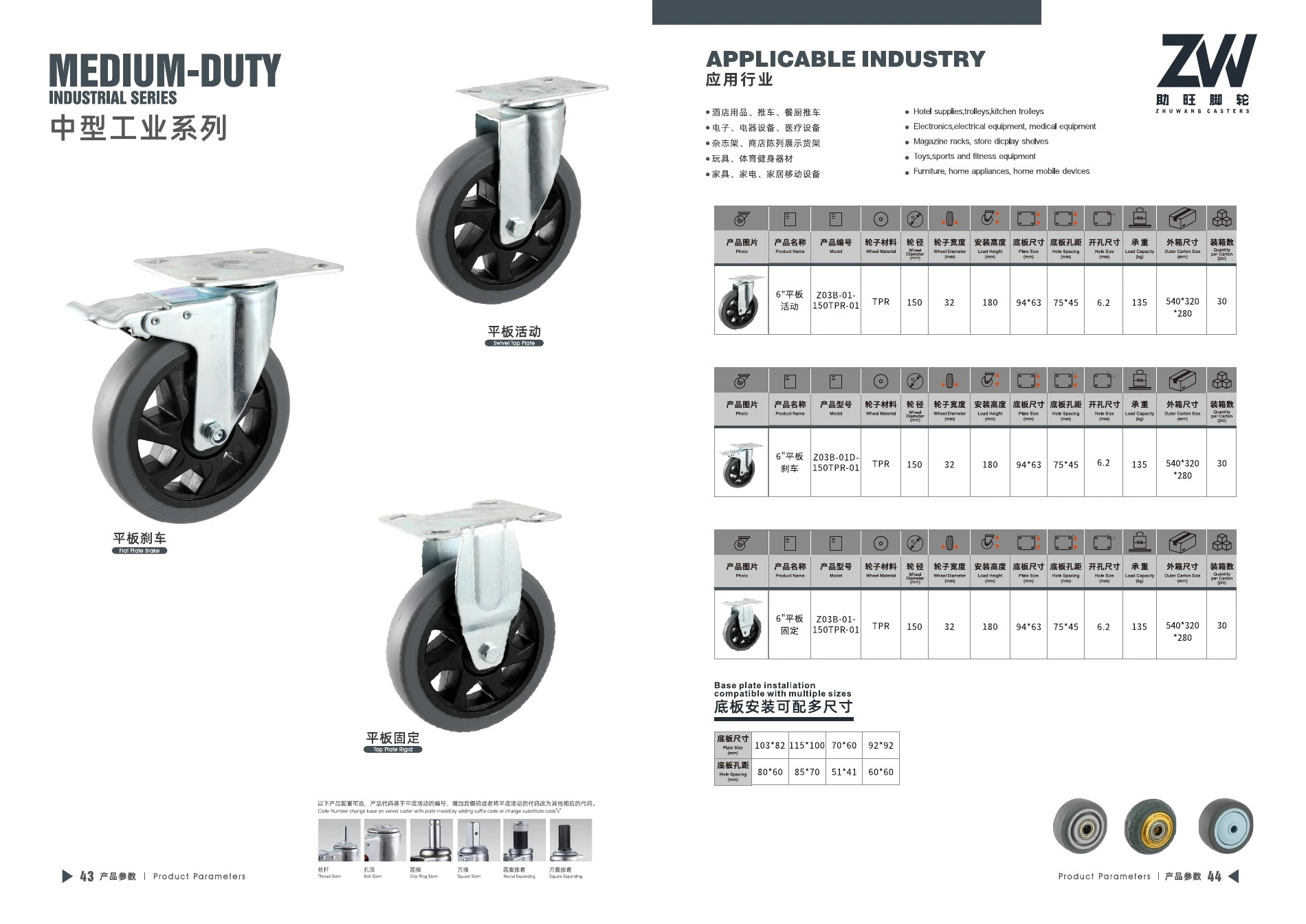

View original catalog pages
Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.
Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
