Medium-Duty Iron-Core PU Casters
Medium-Duty Iron-Core PU Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.

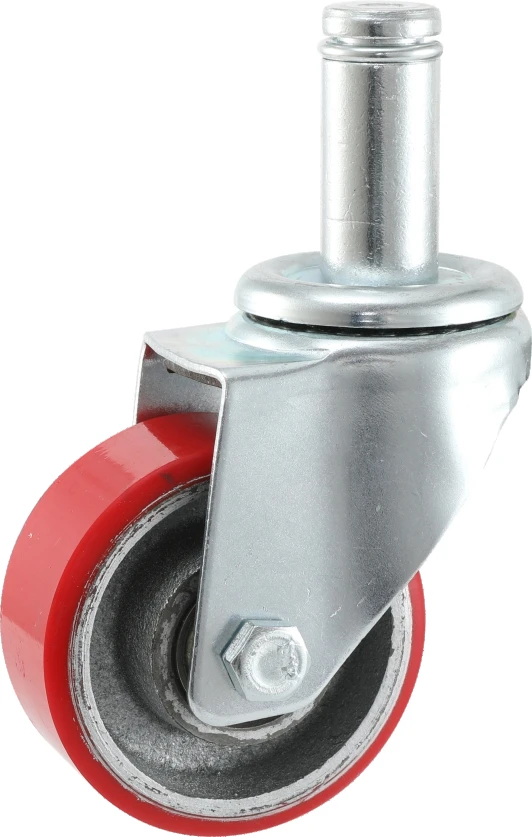

Product illustration from the final catalog. Mounting and brake options vary by model.
Medium-Duty Casters
PUChoose a model.
Confirm your application.
The 2.5-inch expanding-stem row lists 60 mm; the grip-ring rows list 63 mm. These source values are retained. Confirm mounting dimensions.
Catalog series: 铁芯PU系列

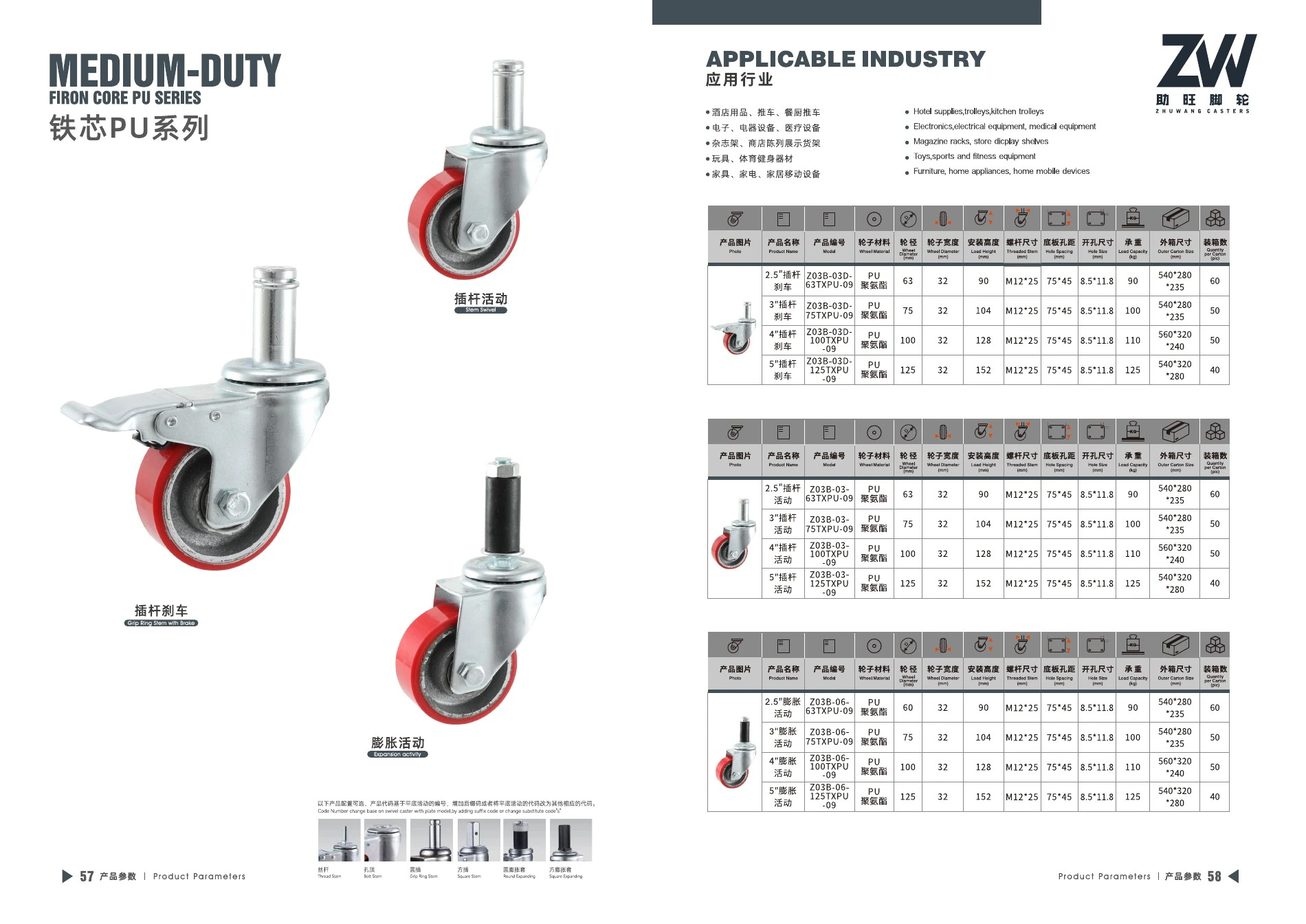

Final PDF page 31 · Printed folios 57, 58
[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China
Catalog models & specifications
Dimensions & listed loads.
| Manufacturer model | Wheel Ø | Width | Overall height | Material | Mounting | Rotation | Brake | Listed load | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| Z03B-03D-63TXPU-09 | 63 | 32 | 90 | PU | Grip ring stem | Swivel | Brake | 90 | Inquire ↗ |
| Z03B-03D-75TXPU-09 | 75 | 32 | 104 | PU | Grip ring stem | Swivel | Brake | 100 | Inquire ↗ |
| Z03B-03D-100TXPU-09 | 100 | 32 | 128 | PU | Grip ring stem | Swivel | Brake | 110 | Inquire ↗ |
| Z03B-03D-125TXPU-09 | 125 | 32 | 152 | PU | Grip ring stem | Swivel | Brake | 125 | Inquire ↗ |
| Z03B-03-63TXPU-09 | 63 | 32 | 90 | PU | Grip ring stem | Swivel | None | 90 | Inquire ↗ |
| Z03B-03-75TXPU-09 | 75 | 32 | 104 | PU | Grip ring stem | Swivel | None | 100 | Inquire ↗ |
| Z03B-03-100TXPU-09 | 100 | 32 | 128 | PU | Grip ring stem | Swivel | None | 110 | Inquire ↗ |
| Z03B-03-125TXPU-09 | 125 | 32 | 152 | PU | Grip ring stem | Swivel | None | 125 | Inquire ↗ |
| Z03B-06-63TXPU-09 | 60 | 32 | 90 | PU | Expanding stem | Swivel | None | 90 | Inquire ↗ |
| Z03B-06-75TXPU-09 | 75 | 32 | 104 | PU | Expanding stem | Swivel | None | 100 | Inquire ↗ |
| Z03B-06-100TXPU-09 | 100 | 32 | 128 | PU | Expanding stem | Swivel | None | 110 | Inquire ↗ |
| Z03B-06-125TXPU-09 | 125 | 32 | 152 | PU | Expanding stem | Swivel | None | 125 | Inquire ↗ |
Mounting dimensions
| Model / configuration | Plate size | Hole spacing | Mounting hole | Stem notation | Stem hole distance |
|---|---|---|---|---|---|
| Z03B-03D-63TXPU-09 Grip ring stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03D-75TXPU-09 Grip ring stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03D-100TXPU-09 Grip ring stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03D-125TXPU-09 Grip ring stem · Swivel with brake | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03-63TXPU-09 Grip ring stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03-75TXPU-09 Grip ring stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03-100TXPU-09 Grip ring stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-03-125TXPU-09 Grip ring stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-06-63TXPU-09 Expanding stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-06-75TXPU-09 Expanding stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-06-100TXPU-09 Expanding stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
| Z03B-06-125TXPU-09 Expanding stem · Swivel | Pending confirmation | 75*45 | 8.5*11.8 | M12*25 | Pending confirmation |
Packing, source references & confirmation notes
| Model / configuration | Pcs / carton | Carton dimensions, as printed (mm) | Source | Notes |
|---|---|---|---|---|
| Z03B-03D-63TXPU-09 Grip ring stem · Swivel with brake | 60 | 540*280*235 | PDF 31, table 1, row 1 | Confirm the selected model and order requirements. |
| Z03B-03D-75TXPU-09 Grip ring stem · Swivel with brake | 50 | 540*280*235 | PDF 31, table 1, row 2 | Confirm the selected model and order requirements. |
| Z03B-03D-100TXPU-09 Grip ring stem · Swivel with brake | 50 | 560*320*240 | PDF 31, table 1, row 3 | Confirm the selected model and order requirements. |
| Z03B-03D-125TXPU-09 Grip ring stem · Swivel with brake | 40 | 540*320*280 | PDF 31, table 1, row 4 | Confirm the selected model and order requirements. |
| Z03B-03-63TXPU-09 Grip ring stem · Swivel | 60 | 540*280*235 | PDF 31, table 2, row 1 | Confirm the selected model and order requirements. |
| Z03B-03-75TXPU-09 Grip ring stem · Swivel | 50 | 540*280*235 | PDF 31, table 2, row 2 | Confirm the selected model and order requirements. |
| Z03B-03-100TXPU-09 Grip ring stem · Swivel | 50 | 560*320*240 | PDF 31, table 2, row 3 | Confirm the selected model and order requirements. |
| Z03B-03-125TXPU-09 Grip ring stem · Swivel | 40 | 540*320*280 | PDF 31, table 2, row 4 | Confirm the selected model and order requirements. |
| Z03B-06-63TXPU-09 Expanding stem · Swivel | 60 | 540*280*235 | PDF 31, table 3, row 1 | Confirm the selected model and order requirements. |
| Z03B-06-75TXPU-09 Expanding stem · Swivel | 50 | 540*280*235 | PDF 31, table 3, row 2 | Confirm the selected model and order requirements. |
| Z03B-06-100TXPU-09 Expanding stem · Swivel | 50 | 560*320*240 | PDF 31, table 3, row 3 | Confirm the selected model and order requirements. |
| Z03B-06-125TXPU-09 Expanding stem · Swivel | 40 | 540*320*280 | PDF 31, table 3, row 4 | Confirm the selected model and order requirements. |
