Products / Medium-Duty Pressed-Bracket PP Casters
Medium-Duty Pressed-Bracket PP Casters
Medium-Duty Pressed-Bracket PP Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.

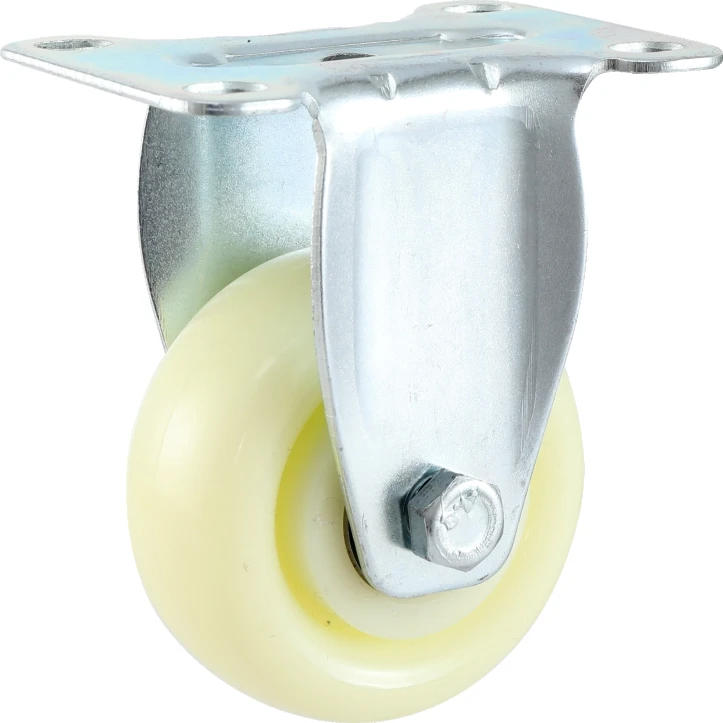

Product illustration from the final catalog. Mounting and brake options vary by model.
Medium-Duty Casters
PPChoose a model.
Confirm your application.
Choose a catalog model and confirm mounting fit, operating conditions and current availability with our team.
Catalog series: 中型通花系列
Final PDF page 19 · Printed folios 25, 26
[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China
Catalog models & specifications
Dimensions & listed loads.
| Manufacturer model | Wheel Ø | Width | Overall height | Material | Mounting | Rotation | Brake | Listed load | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| Z03-01D-63PP-01 | 60 | 32 | 90 | PP | Top plate | Swivel | Brake | 90 | Inquire ↗ |
| Z03-01D-75PP-01 | 75 | 32 | 104 | PP | Top plate | Swivel | Brake | 100 | Inquire ↗ |
| Z03-01D-100PP-01 | 100 | 32 | 128 | PP | Top plate | Swivel | Brake | 110 | Inquire ↗ |
| Z03-01D-125PP-01 | 125 | 32 | 152 | PP | Top plate | Swivel | Brake | 125 | Inquire ↗ |
| Z03-01-63PP-01 | 60 | 32 | 90 | PP | Top plate | Swivel | None | 90 | Inquire ↗ |
| Z03-01-75PP-01 | 75 | 32 | 104 | PP | Top plate | Swivel | None | 100 | Inquire ↗ |
| Z03-01-100PP-01 | 100 | 32 | 128 | PP | Top plate | Swivel | None | 110 | Inquire ↗ |
| Z03-01-125PP-01 | 125 | 32 | 152 | PP | Top plate | Swivel | None | 125 | Inquire ↗ |
| Z03-04-63PP-01 | 60 | 32 | 90 | PP | Top plate | Rigid | None | 90 | Inquire ↗ |
| Z03-04-75PP-01 | 75 | 32 | 104 | PP | Top plate | Rigid | None | 100 | Inquire ↗ |
| Z03-04-100PP-01 | 100 | 32 | 128 | PP | Top plate | Rigid | None | 110 | Inquire ↗ |
| Z03-04-125PP-01 | 125 | 32 | 152 | PP | Top plate | Rigid | None | 125 | Inquire ↗ |
Mounting dimensions
| Model / configuration | Plate size | Hole spacing | Mounting hole | Stem notation | Stem hole distance |
|---|---|---|---|---|---|
| Z03-01D-63PP-01 Top plate · Swivel with brake | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03-01D-75PP-01 Top plate · Swivel with brake | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03-01D-100PP-01 Top plate · Swivel with brake | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03-01D-125PP-01 Top plate · Swivel with brake | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03-01-63PP-01 Top plate · Swivel | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03-01-75PP-01 Top plate · Swivel | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03-01-100PP-01 Top plate · Swivel | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03-01-125PP-01 Top plate · Swivel | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03-04-63PP-01 Top plate · Rigid | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03-04-75PP-01 Top plate · Rigid | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03-04-100PP-01 Top plate · Rigid | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
| Z03-04-125PP-01 Top plate · Rigid | 94*63 | 75*45 | 8.5*11.8 | Pending confirmation | Pending confirmation |
Packing, source references & confirmation notes
| Model / configuration | Pcs / carton | Carton dimensions, as printed (mm) | Source | Notes |
|---|---|---|---|---|
| Z03-01D-63PP-01 Top plate · Swivel with brake | 60 | 540*280*235 | PDF 19, table 1, row 1 | Confirm the selected model and order requirements. |
| Z03-01D-75PP-01 Top plate · Swivel with brake | 50 | 540*280*235 | PDF 19, table 1, row 2 | Confirm the selected model and order requirements. |
| Z03-01D-100PP-01 Top plate · Swivel with brake | 50 | 540*320*240 | PDF 19, table 1, row 3 | Confirm the selected model and order requirements. |
| Z03-01D-125PP-01 Top plate · Swivel with brake | 40 | 540*320*280 | PDF 19, table 1, row 4 | Confirm the selected model and order requirements. |
| Z03-01-63PP-01 Top plate · Swivel | 80 | 540*280*235 | PDF 19, table 2, row 1 | Confirm the selected model and order requirements. |
| Z03-01-75PP-01 Top plate · Swivel | 70 | 540*280*235 | PDF 19, table 2, row 2 | Confirm the selected model and order requirements. |
| Z03-01-100PP-01 Top plate · Swivel | 50 | 540*280*235 | PDF 19, table 2, row 3 | Confirm the selected model and order requirements. |
| Z03-01-125PP-01 Top plate · Swivel | 40 | 560*320*240 | PDF 19, table 2, row 4 | Confirm the selected model and order requirements. |
| Z03-04-63PP-01 Top plate · Rigid | 80 | 540*280*235 | PDF 19, table 3, row 1 | Confirm the selected model and order requirements. |
| Z03-04-75PP-01 Top plate · Rigid | 70 | 540*280*235 | PDF 19, table 3, row 2 | Confirm the selected model and order requirements. |
| Z03-04-100PP-01 Top plate · Rigid | 50 | 540*280*235 | PDF 19, table 3, row 3 | Confirm the selected model and order requirements. |
| Z03-04-125PP-01 Top plate · Rigid | 40 | 560*320*240 | PDF 19, table 3, row 4 | Confirm the selected model and order requirements. |

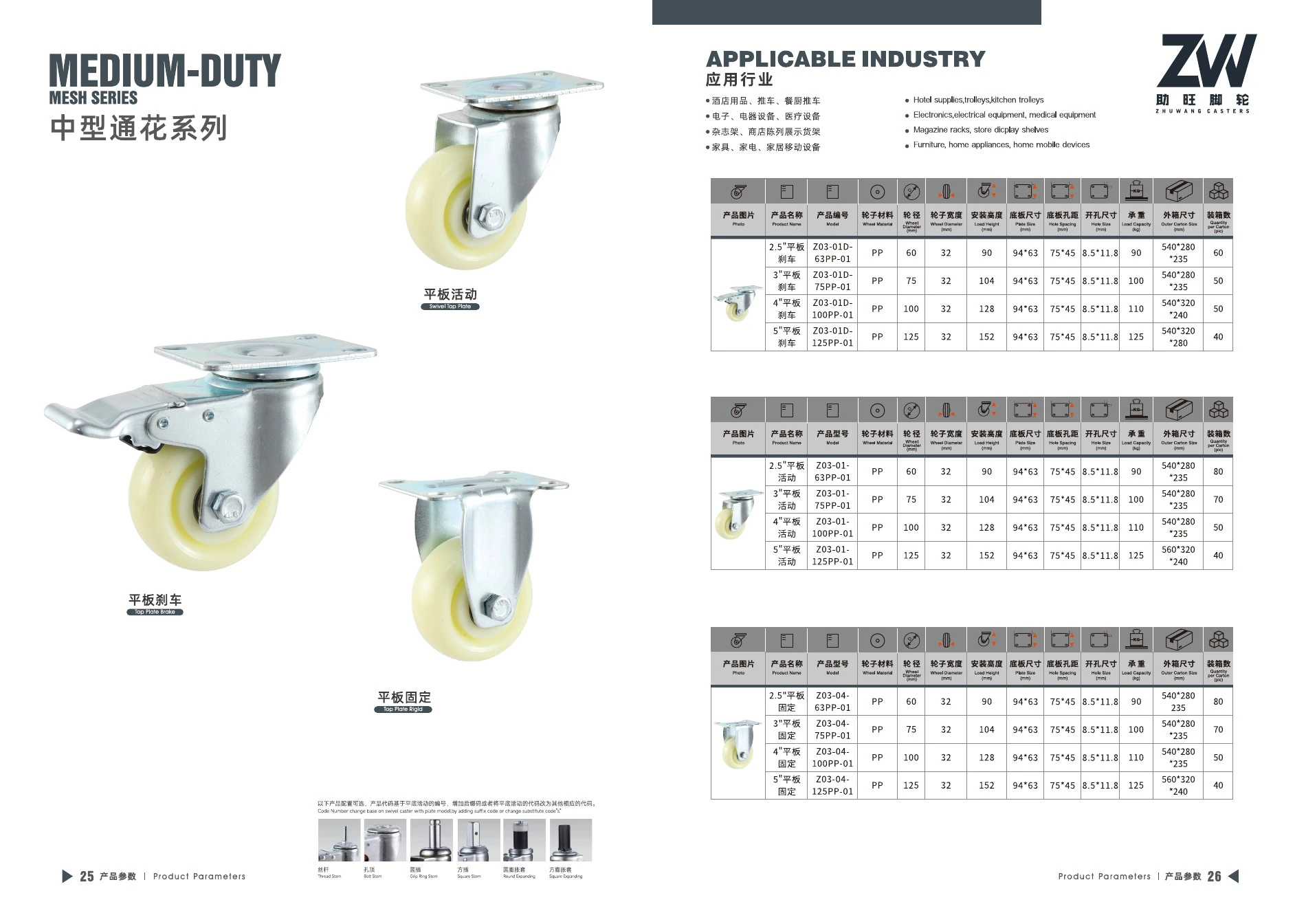

View original catalog pages
Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.
Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
← Complete product catalogStart with your application.
Tell us the load, wheel size, mounting type and order quantity.
