Scaffold Casters
Scaffold Casters from the final product catalog. Compare listed models, dimensions and mounting configurations.
Product illustration from the final catalog. Mounting and brake options vary by model.
Scaffold Casters
ScaffoldRubberCIPUChoose a model.
Confirm your application.
Choose a catalog model and confirm mounting fit, operating conditions and current availability with our team.
Catalog series: 手脚架系列
Final PDF page 42 · Printed folios 81, 82
[email protected]
WhatsApp +233 502346695
Guangdong Zhuwang Caster Factory
Xiaolan Town, Zhongshan City, Guangdong Province, China
Catalog models & specifications
Dimensions & listed loads.
| Manufacturer model | Wheel Ø | Width | Overall height | Material | Mounting | Rotation | Brake | Listed load | Inquiry |
|---|---|---|---|---|---|---|---|---|---|
| Z07-03D-150HR-09 | 150 | 50 | 185 | Rubber | Grip ring stem | Swivel | Brake | 200 | Inquire ↗ |
| Z07-03D-200HR-09 | 200 | 50 | 240 | Rubber | Grip ring stem | Swivel | Brake | 230 | Inquire ↗ |
| Z07-03D-150PU-10 | 150 | 50 | 185 | CIPU | Grip ring stem | Swivel | Brake | 200 | Inquire ↗ |
| Z07-03D-200PU-10 | 200 | 50 | 240 | CIPU | Grip ring stem | Swivel | Brake | 230 | Inquire ↗ |
Mounting dimensions
| Model / configuration | Plate size | Hole spacing | Mounting hole | Stem notation | Stem hole distance |
|---|---|---|---|---|---|
| Z07-03D-150HR-09 Grip ring stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | 96*35 | 12.2*52.7 |
| Z07-03D-200HR-09 Grip ring stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | 96*35 | 12.2*52.7 |
| Z07-03D-150PU-10 Grip ring stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | 96*35 | 12.2*52.7 |
| Z07-03D-200PU-10 Grip ring stem · Swivel with brake | Pending confirmation | Pending confirmation | Pending confirmation | 96*35 | 12.2*52.7 |
Packing, source references & confirmation notes
| Model / configuration | Pcs / carton | Carton dimensions, as printed (mm) | Source | Notes |
|---|---|---|---|---|
| Z07-03D-150HR-09 Grip ring stem · Swivel with brake | 8 | 400*400*270 | PDF 42, table 1, row 1 | Confirm the selected model and order requirements. |
| Z07-03D-200HR-09 Grip ring stem · Swivel with brake | 4 | 385*250*230 | PDF 42, table 1, row 2 | Confirm the selected model and order requirements. |
| Z07-03D-150PU-10 Grip ring stem · Swivel with brake | 8 | 400*400*270 | PDF 42, table 2, row 1 | Confirm the selected model and order requirements. |
| Z07-03D-200PU-10 Grip ring stem · Swivel with brake | 4 | 385*250*230 | PDF 42, table 2, row 2 | Confirm the selected model and order requirements. |

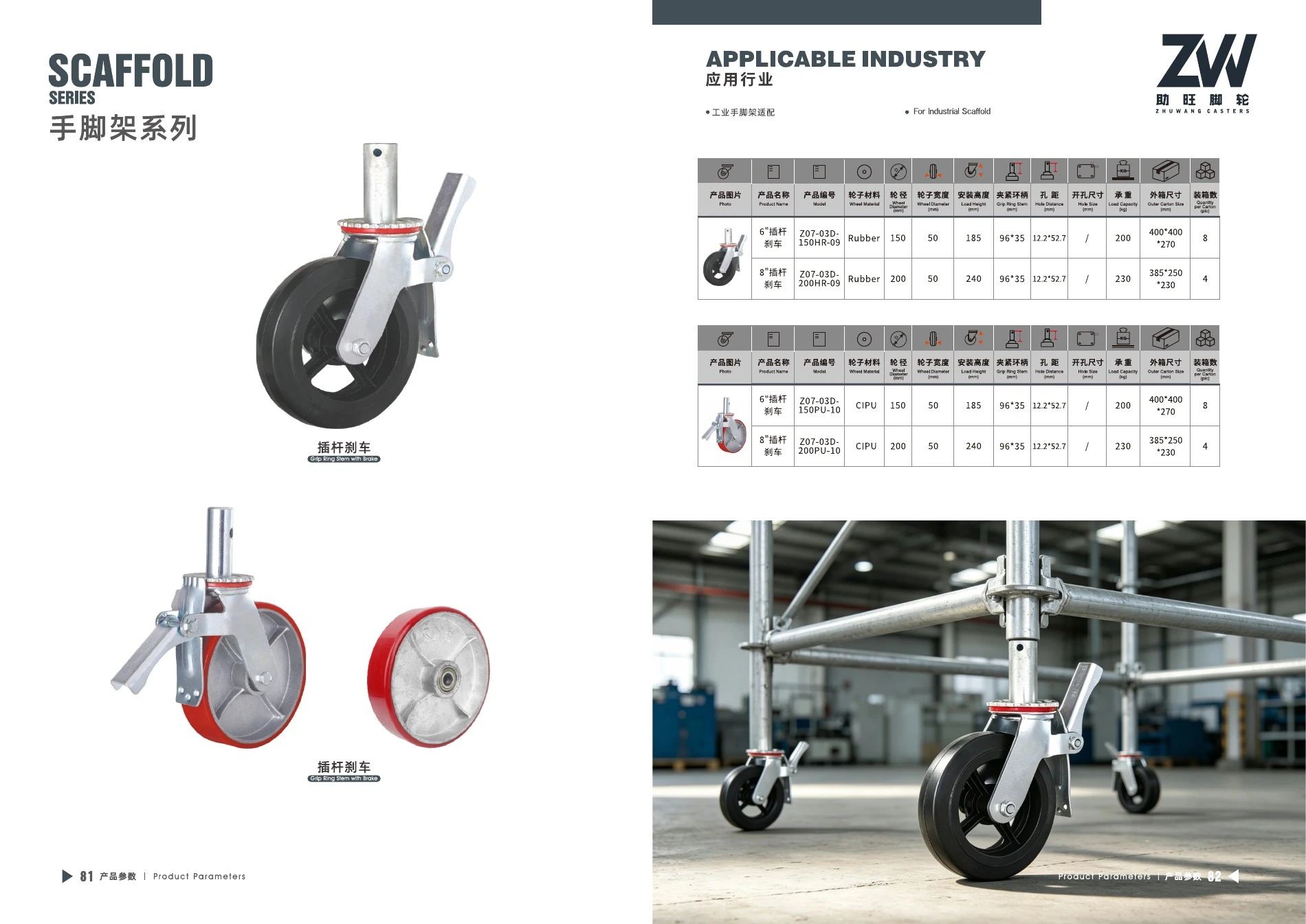

View original catalog pages
Original source spreads preserve illustrations, model labels, dimensions and footnotes. Download the full PDF for detailed review.
Confirm model, mounting fit, load conditions, sample and packing details before ordering. No certification or test result is inferred from the catalog.
